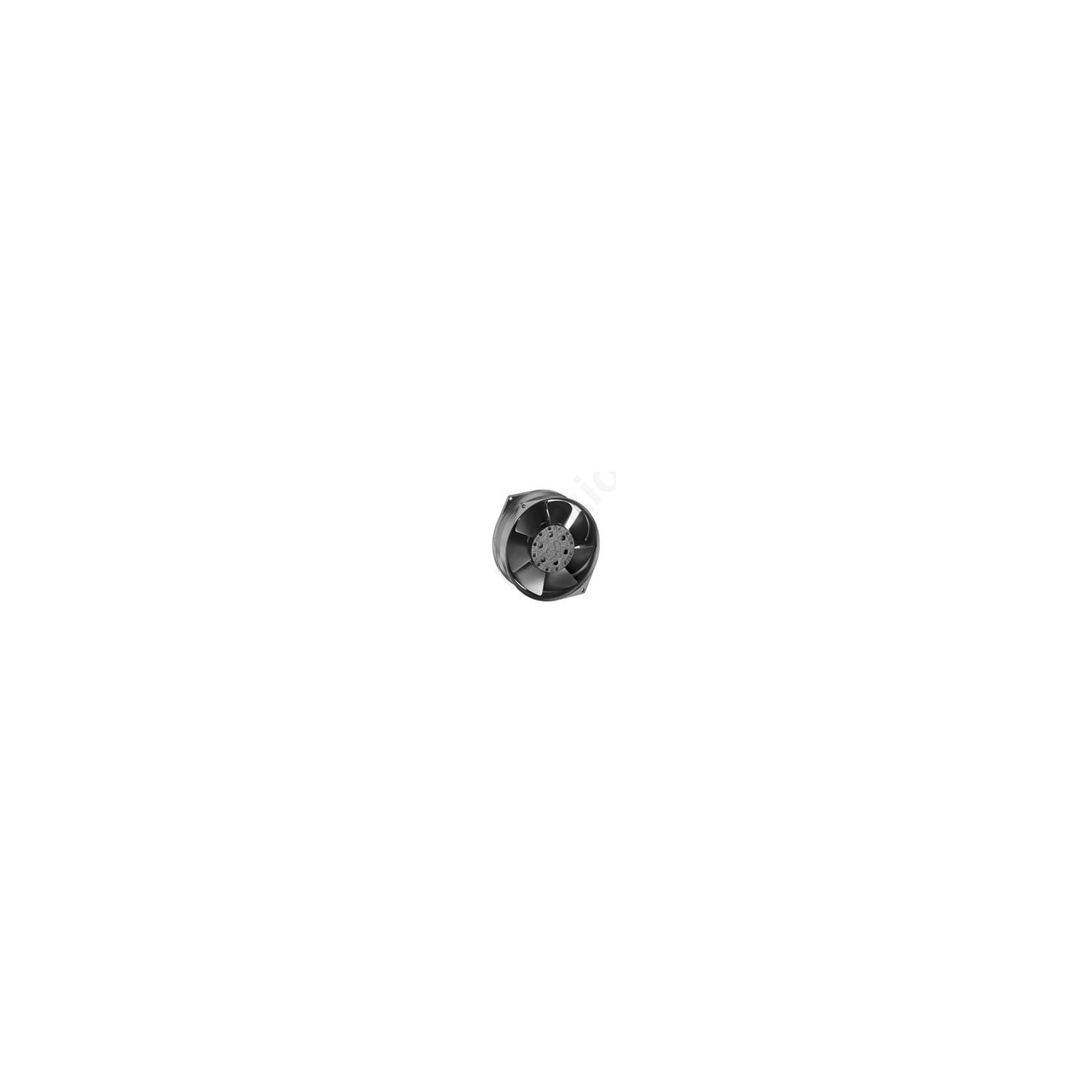

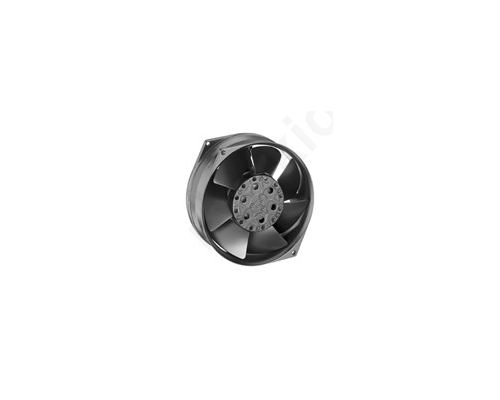

BLOWER EBM A2S 130-AA03-01P

W2S130-AA03-01 EBM-PAPST AXIAL FAN 130 mm 220V CA fan with exterior rotor and shaded pole motor.

Technical description:

- Approval: CCC CSA C22.2 Nr.13 GOST UL 507 VDE
- Motor bearing: Ball bearing
- Condensed discharge holes: None
- Air flow direction: "V"
- Rotation direction: Counterclockwise, when looking at the rotor
- Insulation class: "B"
- Actual leakage: <0,75 mA
- Weight: 1,1 kg
- Impeller material: Steel sheet, covered in black
- Ring wall material: Pressure cast aluminum, covered in black
- Max. ambient temperature allowable for motor: + 80°C
- Min. ambient temperature allowable for motor: - 40°C
- Motor protection: Thermal overload protector (TOP) with internal cable connection - Mounting position: Any
- Number of blades: 7
- Mode of operation: S1
- Product conforms to norms: CE
- Product conforms to norms: EN 60335-1
- Size: 130 mm
