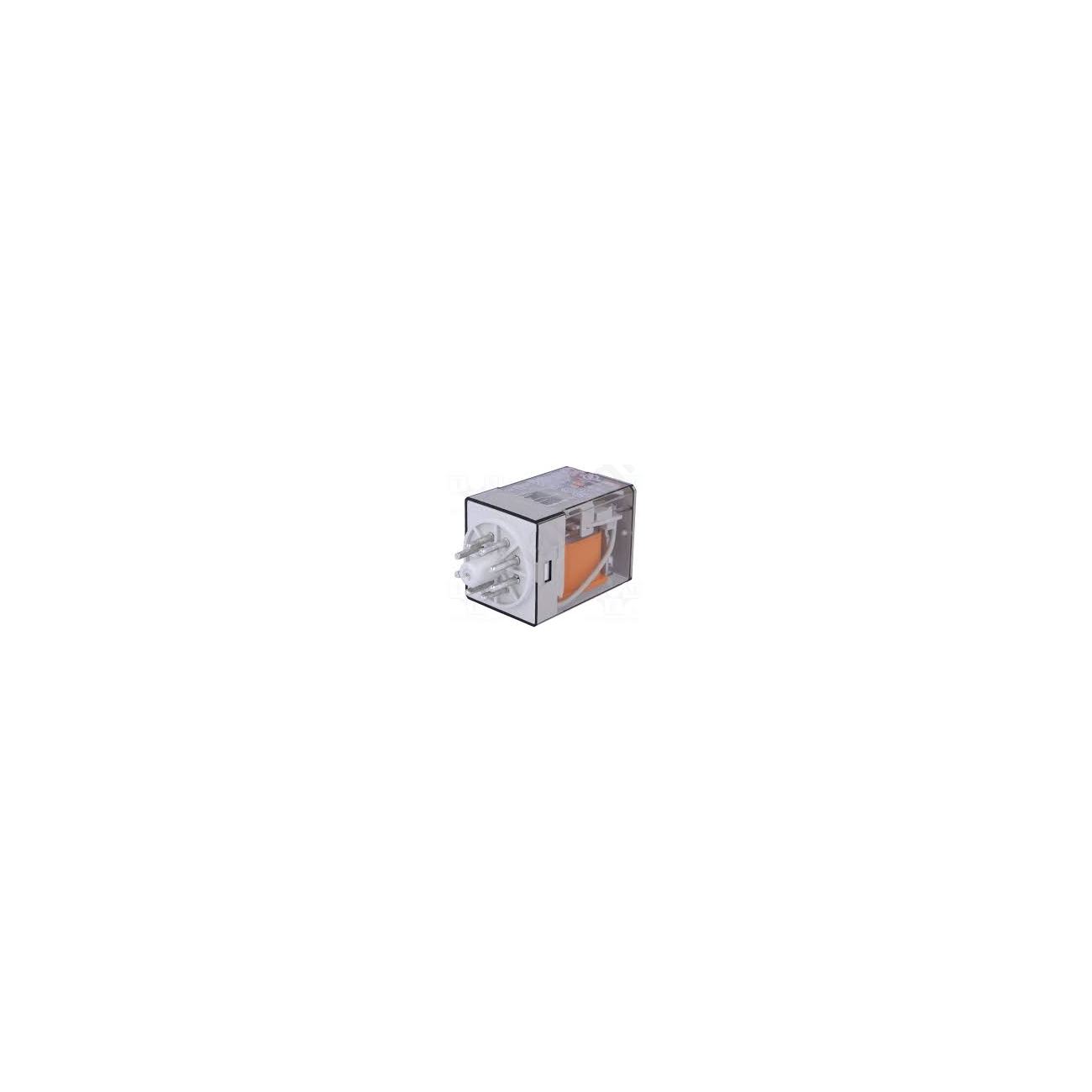

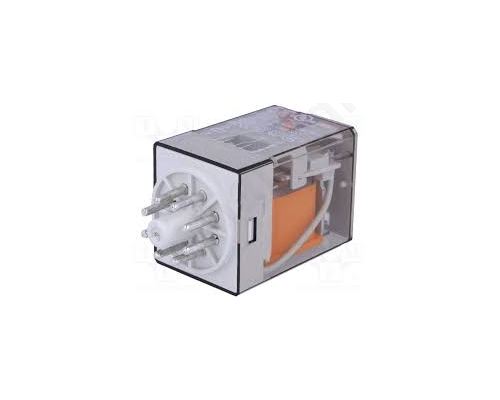

Relay 24VAC 10A/250VAC 10A/30VDC

Manufacturer FINDER
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V AC
AC contacts rating @R
(at resistive load) 10A / 250V AC
DC contacts rating @R
(at resistive load) 10A / 30V DC
Contact current max. 10A
Switched voltage max. 220V DC, max. 400V AC
Relay variant industrial
Mounting socket
Relay series 60.12
Operating temperature -40...70°C
Body dimensions 36.4x32.5x54.2mm
Coil resistance 74O
Coil current 90mA
Contact material AgNi
Coil power consumption 2.2VA
Leads stud terminals
Number of pins 8
Electrical connection round socket
