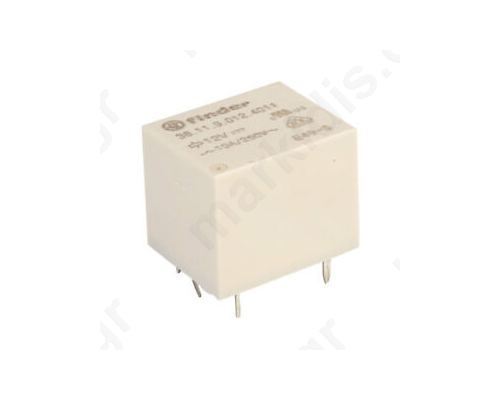

Relay electromagnetic SPDT 9VDC 10A/250VAC 15Α ΜΕΓΙΣΤΟ ΡΕΥΜΑ ΕΦΑΠΩΝ 10A/30VDC

Manufacturer FINDER
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 9V DC
AC contacts rating @R
(at resistance load) 10A / 250V AC
DC contacts rating @R
(at resistance load) 10A / 30V DC
Contact current max. 15A
Switched voltage max 220V DC, max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 225O
Coil voltage min. 6.7V DC
Coil voltage max. 11.7V DC
Body dimensions 19 x 15.5 x 15.5mm
Coil power consumption 400mW
Operating temperature -40...85°C
Relay series 36.11
Contact material AgSnO2
Terminal pitch 2mm
