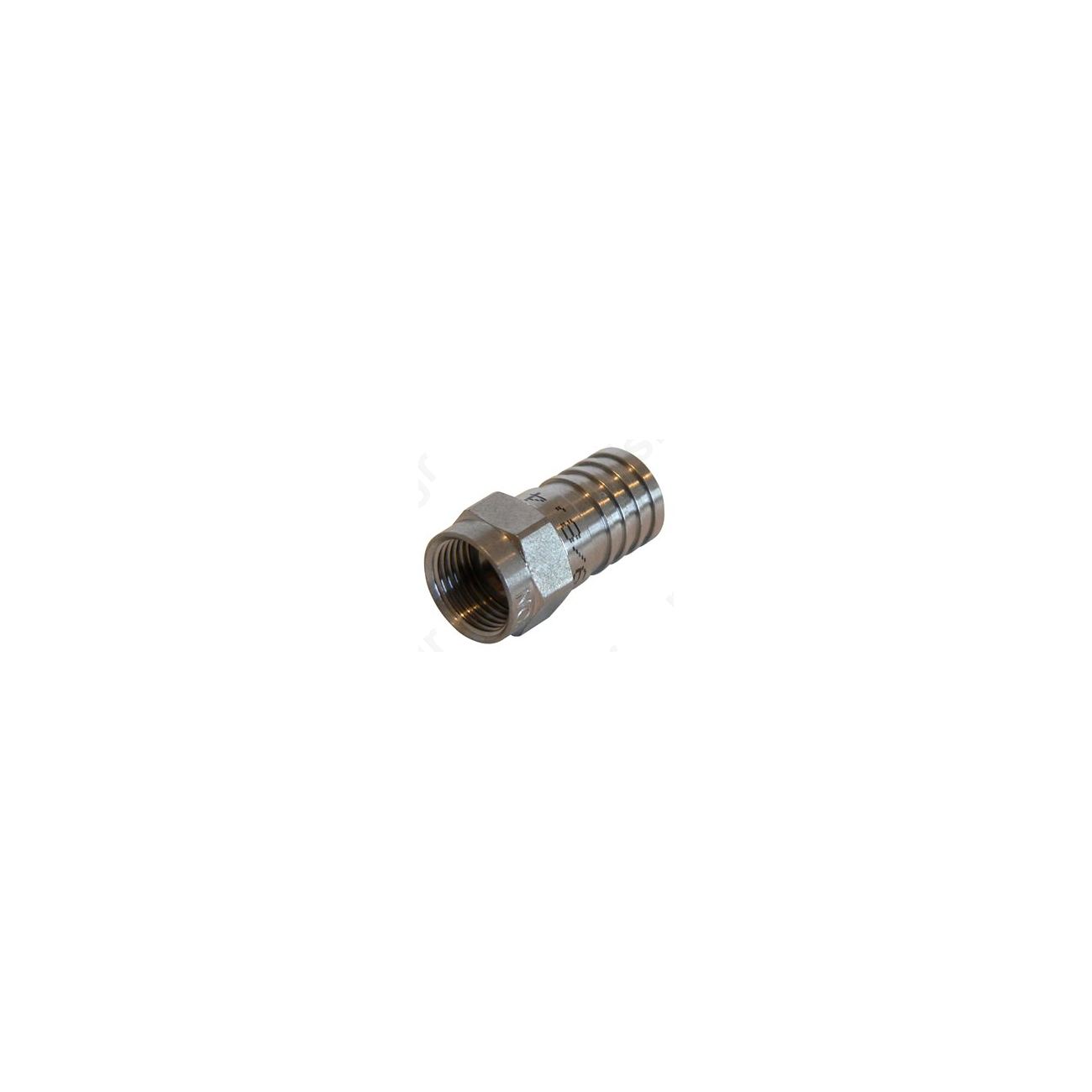

CAVEL F125A F CRIMP CONNECTOR (για 11/50, DG125)

Material type nitin-plated brass Connector pull strenght 134 N Overall dimensions 24,0 x 12,0 mm Insertion attenuation 5 - 2000 MHz < 0,02 dB Insertion attenuation 2000 - 2500 MHz < 0,11 dB Characteristic impedance 75 +/- 2 Ohm Operational Frequence 5 - 2500 MHz Connector's screening attenuation higher than the one of the cable Structural Return Loss 5 - 500 MHz > 43 dB Structural Return Loss 500 - 1000 MHz > 34 dB Compliance to the norm EN50117-2 Mounting tool code CRT03 Mounting tool code CRT04 Mounting tool code CRT05
