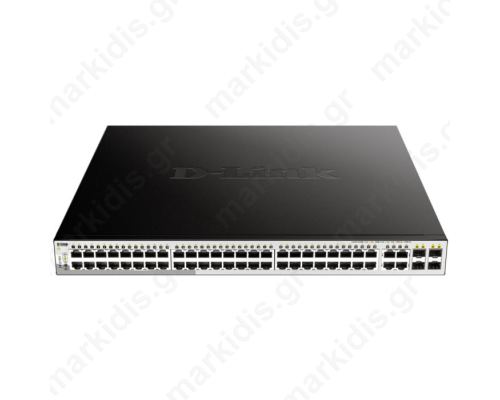

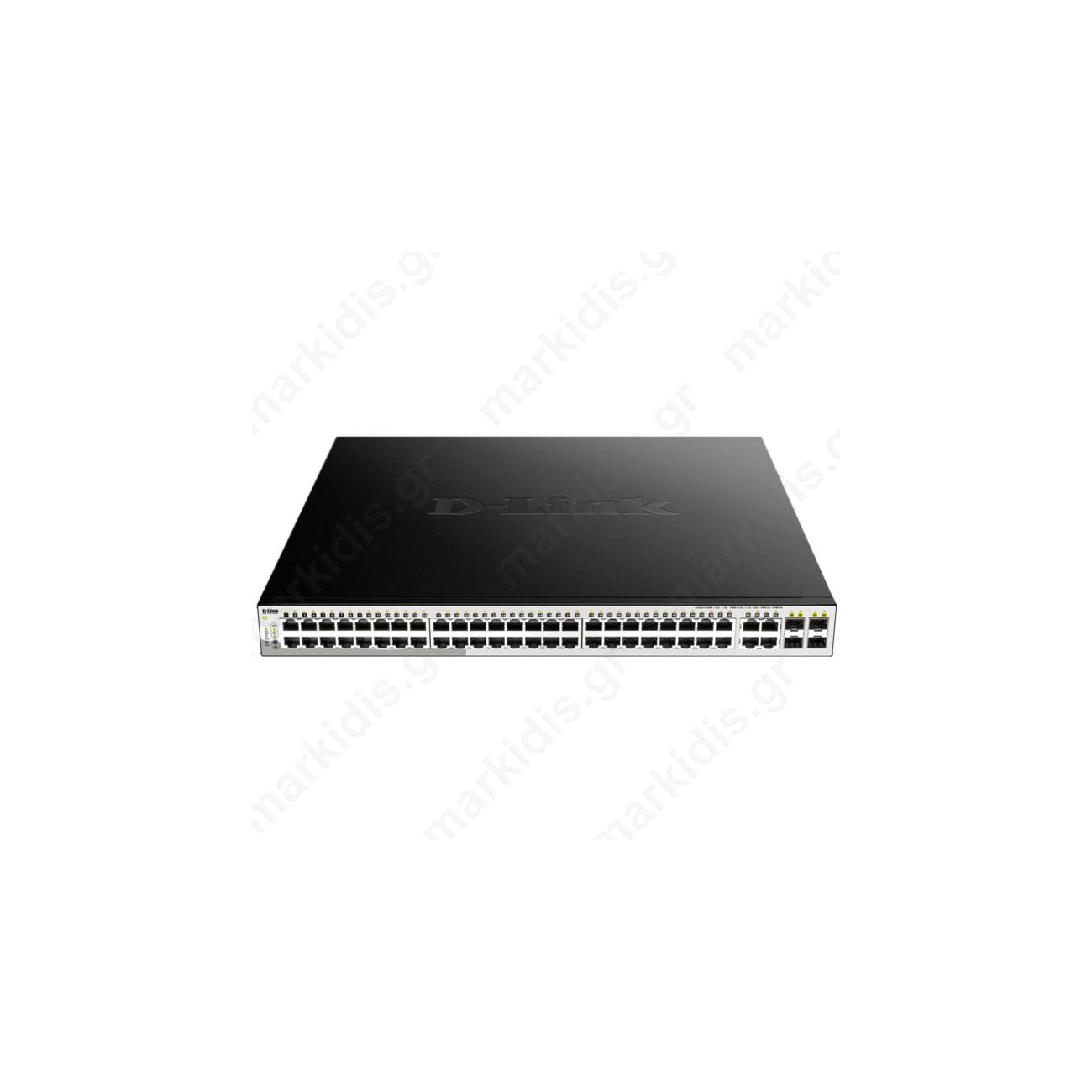

D-LINK DGS-1210-52MP SMART SWITCH GIGABIT MAX POE 4xSFP

52-Port Max PoE Gigabit Smart Managed switch, 48xGigabit & 4xcombo Gigabit/SFP ports.

H σειρά D-Link DGS-1210 Smart Switch της D-Link, είναι managed switch τελευταίας γενιάς. Προσφέρουν πολλαπλές επιλογές διαχείρισης, επιτρέποντας γρήγορη ανάπτυξη, επέκταση υποδομής και αναβαθμίσεις λειτουργιών χωρίς προβλήματα. Χτισμένη για μικρές και μεσαίες επιχειρήσεις, η σειρά DGS-1210 παρέχει λειτουργικότητα, ασφάλεια και διαχειρισιμότητα με προηγμένες δυνατότητες Layer 2. Η υποστήριξη για τη διαχείριση και τις διαμορφώσεις IPv6 διασφαλίζει ότι το δίκτυό σας παραμένει προστατευμένο μετά την αναβάθμιση από IPv4 σε IPv6.

Tεχνικές προδιαγραφές:
- 48 θύρες PoE 10/100/1000BASE-TX , 4x SFP θύρες
- 802.3af/802.3at/52 ports/370W
- Switch Capacity: 104 Gbps
- 64-Byte Packet Forwarding Rate: 77.4 Mpps
- MAC Address Table Size: 16K
- Packet Buffer: 3 MB per device
- Jumbo Frame : Up to 9,216 Bytes
- Διαγνωστικά LED: Power (per device), Link/Activity/Speed (per 10/100/1000 Mbps port), Link/Activity/Speed (per combo port)
- Kατανάλωση ενέργειας (Standby/Maximum): 48.9W / 483.1W (PoE)
- Τροφοδοσία εισόδου: 100 - 240 VAC, 50/60HZ internal universal power supply
- Διαστάσεις (ΜxΠxΥ): 440 x 430 x 44 mm
- Bάρος: 5.78 kg
- Αερισμός: smart fans
- Απαγωγή θερμότητας: 1,648.23 BTU per hour
- Θερμοκρασία: λειτουργίας -5° to 50°C / αποθήκευση : -20° to 70°C
- Υγρασία λειτουργίας: 0% ~ 95% non-condensing / αποθήκευση 0% ~ 95% non-condensing
- Certification: CE Class A
- Safety: cUL, LVD

Χαρακτηριστικά ασφαλείας
- Port Security: Supports up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- Static MAC
- D-Link Safeguard Engine
- DHCP Server Screening
- Trusted Host
- ARP Spoofing Prevention: Max. 64 entries
- SSL: Supports v1/v2/v3, Supports IPv4/IPv6
- Traffic Segmentation
- Smart Binding: Discover connected devices and click to bind, ARP Packet Inspection: 256 entries, IP/4/IPv6 Packet Inspection: 127/63 entries, Supports DHCP Snooping
- AAA: 802.1X Port-based Authentication, Supports RADIUS Server, Supports EAP, OTP, TLS, TTLS, PEAP
- OAM: Cable Diagnostics, Factory Reset

Έξυπνη διαχείριση
- D-Link Network Assistant Utility or Web-based GUI
- Built-in SNMP MIB for remote NMS (D-View 6.0)
- Compact CLI through Telnet
- Auto Voice VLAN

Χαρακτηριστικά λογισμικού

Χαρακτηριστικά L2
- MAC Address Table: 16K
- Flow Control: 802.3x Flow Control, HOL Blocking Prevention
- Jumbo Frame up to 10,000 Bytes
- IGMP Snooping: IGMP v1/v2 Snooping, IGMP Snooping v3 Awareness, Supports 256 IGMP groups, Supports at least 64 static multicast addresses, IGMP per VLAN, Supports IGMP Snooping Querier
- MLD Snooping: Supports MLD v1/v2 awareness, Supports 256 groups, Fast Leave
- Spanning Tree Protocol: 802.1D STP, 802.1w RSTP
- Loopback Detection
- 802.3ad Link Aggregation: Max. 8 groups per device/8 ports per group
- Port Mirroring: One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
- Multicast Filtering: Forwards all unregistered groups, Filters all unregistered groups, LLDP, LLDP-MED

Χαρακτηριστικά VLAN
- 802.1Q Tagged VLAN
- VLAN Group: Max. 256 static VLAN groups, Max. 4094 VIDs
- Management VLAN
- Asymmetric VLAN
- Auto Voice VLAN
- Auto Surveillance VLAN

Quality of Service (QoS)
- 802.1p Quality of Service
- Queue Handling: Strict, Weighted Round Robin (WRR)
- 8 queues per port
- Bandwidth Control: Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 16 Kb/s)
- CoS based on: 802.1p Priority Queues, DSCP, ToS, TCP/UDP port number, IPv6 traffic class

Χαρακτηριστικά L3
- IP Interface: Supports 1 interface, IPv6 Neighbor Discovery (ND)
- Static Routing: 124/50 IPv4/6 Static Route Entries

Λίστα ελέγχου πρόσβασης (ACL)
- Single or multiple ports (each rule)
- ACL based on: MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), IPv6 Address (ICMP/TCP/UDP)1, 802.1p, DSCP, Ether type, IPv6 traffic class
- ACL Actions: Permit, Deny
- Max. 6 profiles
- Max.768 entries
- Single or multiple ports (each rule)

Διαχείριση
- Multi-Language Web-based GUI
- SmartConsole Utility
- Telnet Server
- TFTP Client
- IPv6 Neighbor Discovery
- Configurable MDI/MDIX
- SNMP: Supports v1, v2, v3
- SNMP Trap
- System Log
- BootP/DHCP Client
- D-Link Network Assistant support
- SNTP
- ICMPv6
- IPv4/v6 Dual Stack
- DHCP Auto Configuration
- RMON v1

Power Saving Technology
- 802.3az Energy Efficient Ethernet (EEE) (disabled by default)
- Power Saving by: Link Status, Cable Length detection, LED or Port Shut-off, Port Standby mode, System Hibernation mode

MIB
- 1213 MIB II
- 1493 Bridge MIB
- 1907 SNMP v2 MIB
- 1215 Trap Convention MIB
- 2233 Interface Group MIB
- D-Link Private MIB
- Power-Ethernet MIB
- LLDP MIB

- Λίστα προτύπων MIB/RFC : RFC 783 TFTP, RFC 951 BootP/DHCP Client, RFC 1157 SNMP v1, v2, v3, RFC 1213 MIB II, RFC 1215 , MIB Traps Convention, RFC 1350 TFTP, RFC 1493 Bridge MIB, RFC 1769 SNTP, RFC 1542 BootP/DHCP Client, RFC 1901 SNMP v1, v2, v3, RFC 1907 SNMP v2 MIB, RFC 1908 SNMP v1, v2, v3, RFC 2131 BootP/DHCP Client, RFC 2138 RADIUS Authentication, RFC 2139 RADIUS Authentication, RFC 2233 Interface Group MIB, RFC-2246 SSL, RFC 2475, RFC 2570 SNMP v1, v2, v3, RFC 2575 SNMP v1, v2, v3, RFC 2598 CoS, RFC 2618 RADIUS Authentication, RFC 2819 RMON v1, RFC 2865, RADIUS Authentication, RFC 3164 System Log, RFC 3195 System Log, RFC 3411-17 SNMP, D-Link Private MIB, LLDP MIB, Zone Defense MIB, 2233 Interface Group MIB
