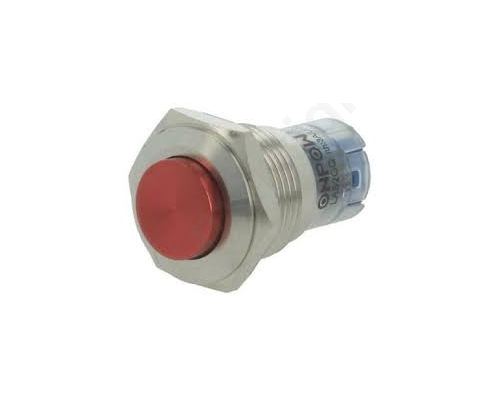

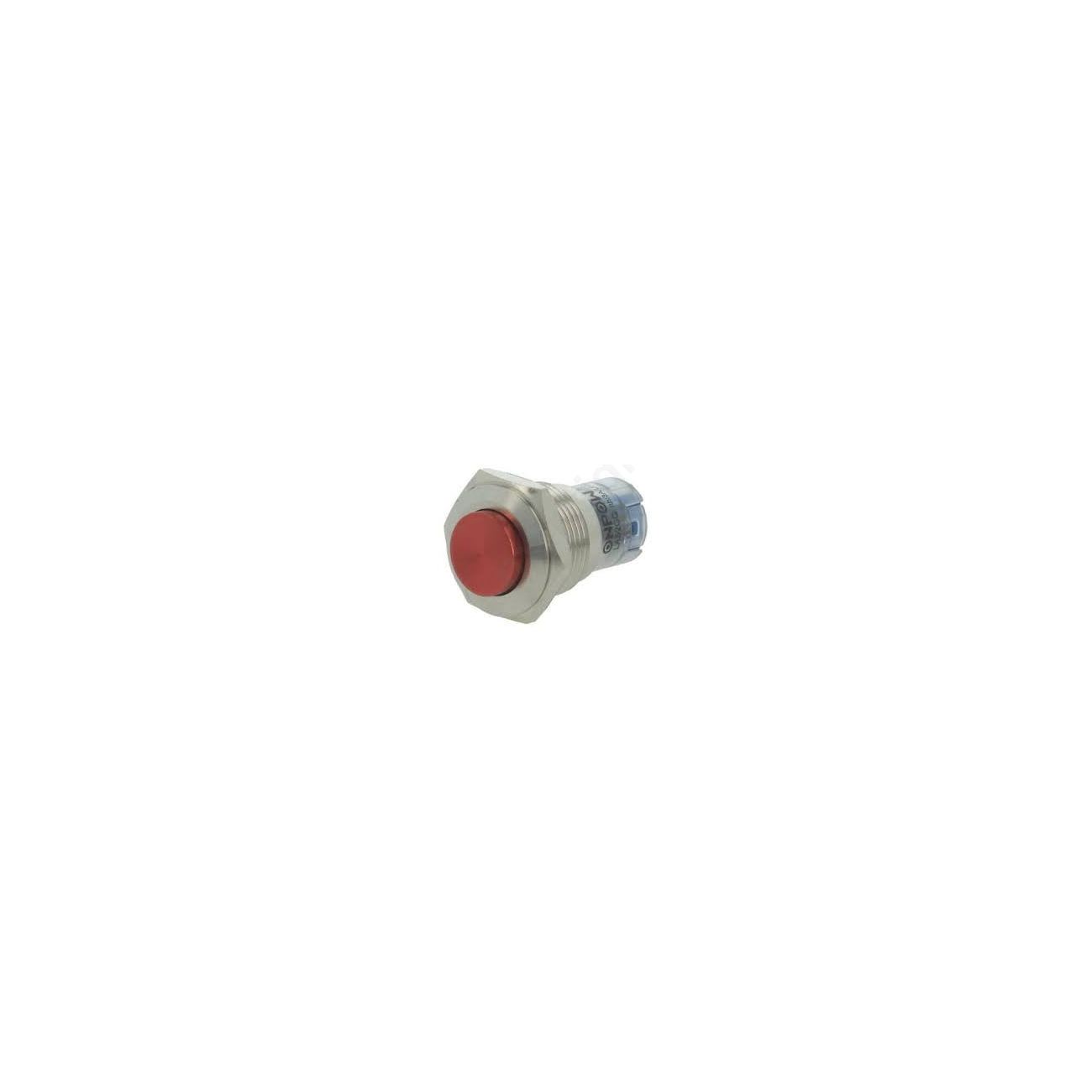

Switch vandal resistant Positions 2 SPDT 0.5A/220VAC IP40

Manufacturer ONPOW
Type of switch vandal resistant
Number of positions 2
Contacts configuration SPDT
AC contacts rating @R
(at resistive load) 0.5A / 220V AC
DC contacts rating @R
(at resistive load) 1A / 24V DC
IP rating IP40
Switching method
(item in brackets is instantaneous) ON-ON
Illumination none
Leads for soldering
Operating temperature -20...55°C
Electrical life 50000 cycles
Max. contact resistance: 50mO
Operating Force 4N
Mechanical durability 200000 cycles
Button shape prominent
Mounting hole diameter Ψ16mm
Body colour silver
Body material stainless steel
Ring shape rounded
Test voltage 2kV
Contact material silver alloy
Stable positions number 2
