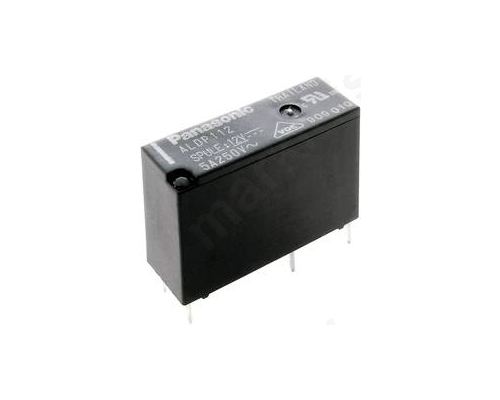

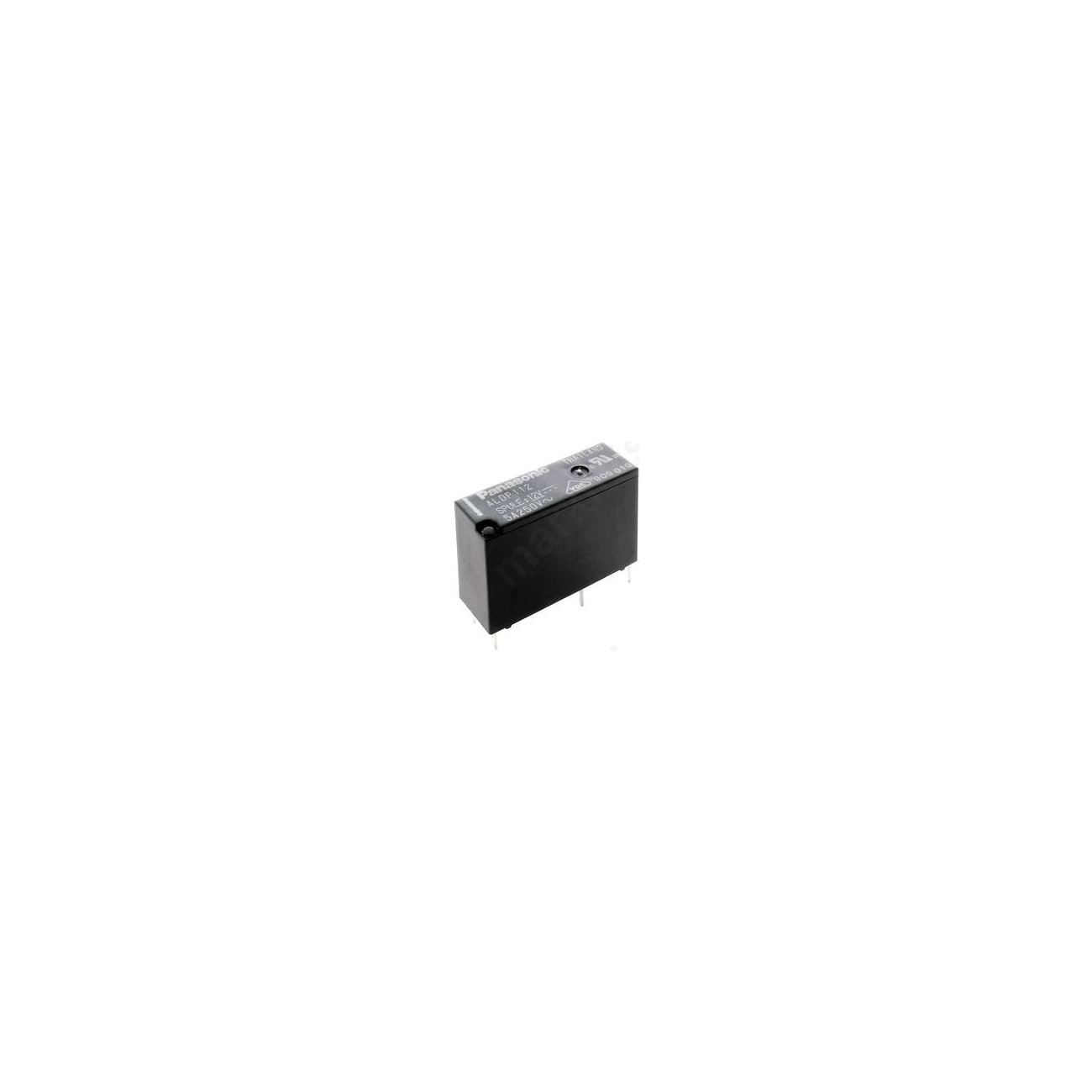

Relay electromagnetic SPST-NO 24VDC 5A/277VAC 3A/30VDC

Manufacturer PANASONIC
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating @R
(at resistive load) 5A / 277V AC
DC contacts rating @R
(at resistive load) 3A / 30V DC
Contact current max. 5A
Switched voltage max. 30V DC, max. 277V AC
Relay variant miniature
Mounting PCB
Coil resistance 2.88kO
Coil voltage min. 18V DC
Body dimensions 20.5x7.2x15.3mm
Coil power consumption 200mW
Mechanical durability 5000000 cycles
Operating temperature -40...85°C
Relay series ALDP
Contact material AgNi
Coil current 8.3mA
