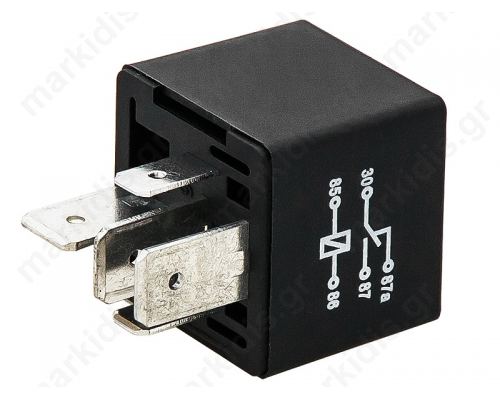

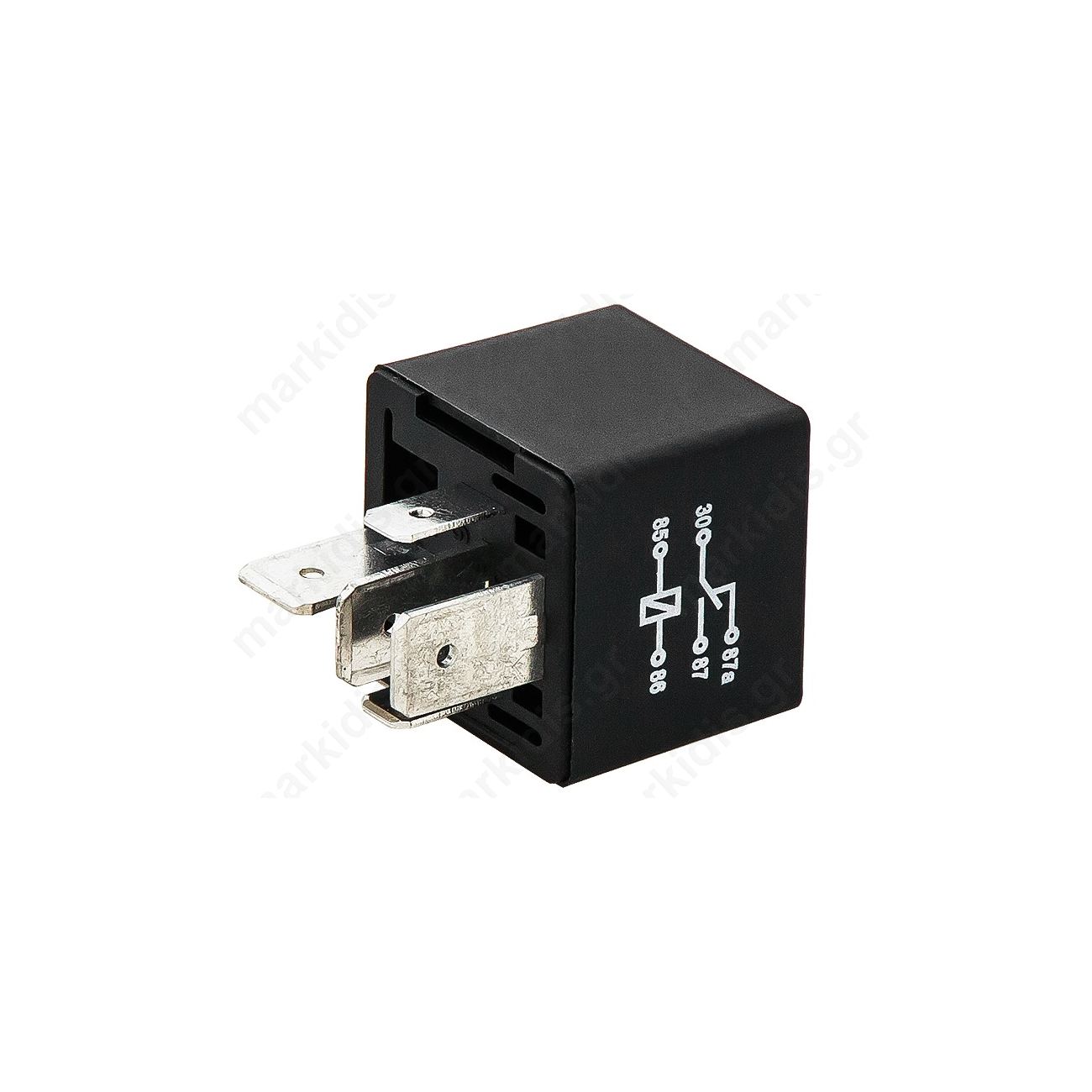

Automotive Relay 12V / 80A
Click to enlarge
Share:
Relay: electromagnetic 12VDC; 80A; DC load:60A/14VDC
- Item Code: 800032001005
-
Availability:
Expected
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Specification
| electromagnetic | |
| SPDT | |
| 12V DC | |
| 80A | |
| 60 A / 14 VDC | |
| automotive | |
| 72Ω | |
| AgCdO | |
| panel mounting | |
| -40...85°C | |
| 28 x 28 x 25mm | |
| AM3 | |
| 50mΩ | |
| 6.3x0.8mm connectors, 9.5x1.2mm connectors | |
| 1.8W | |
| 167mA | |
| 7ms | |
| 5ms |
