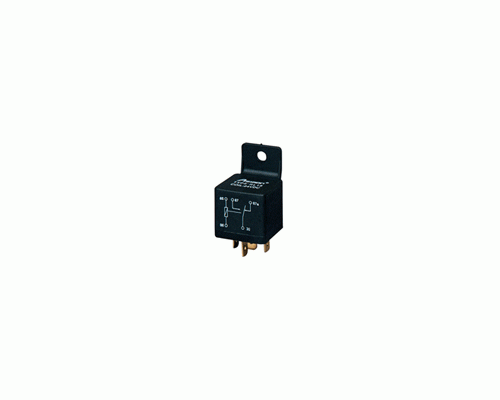

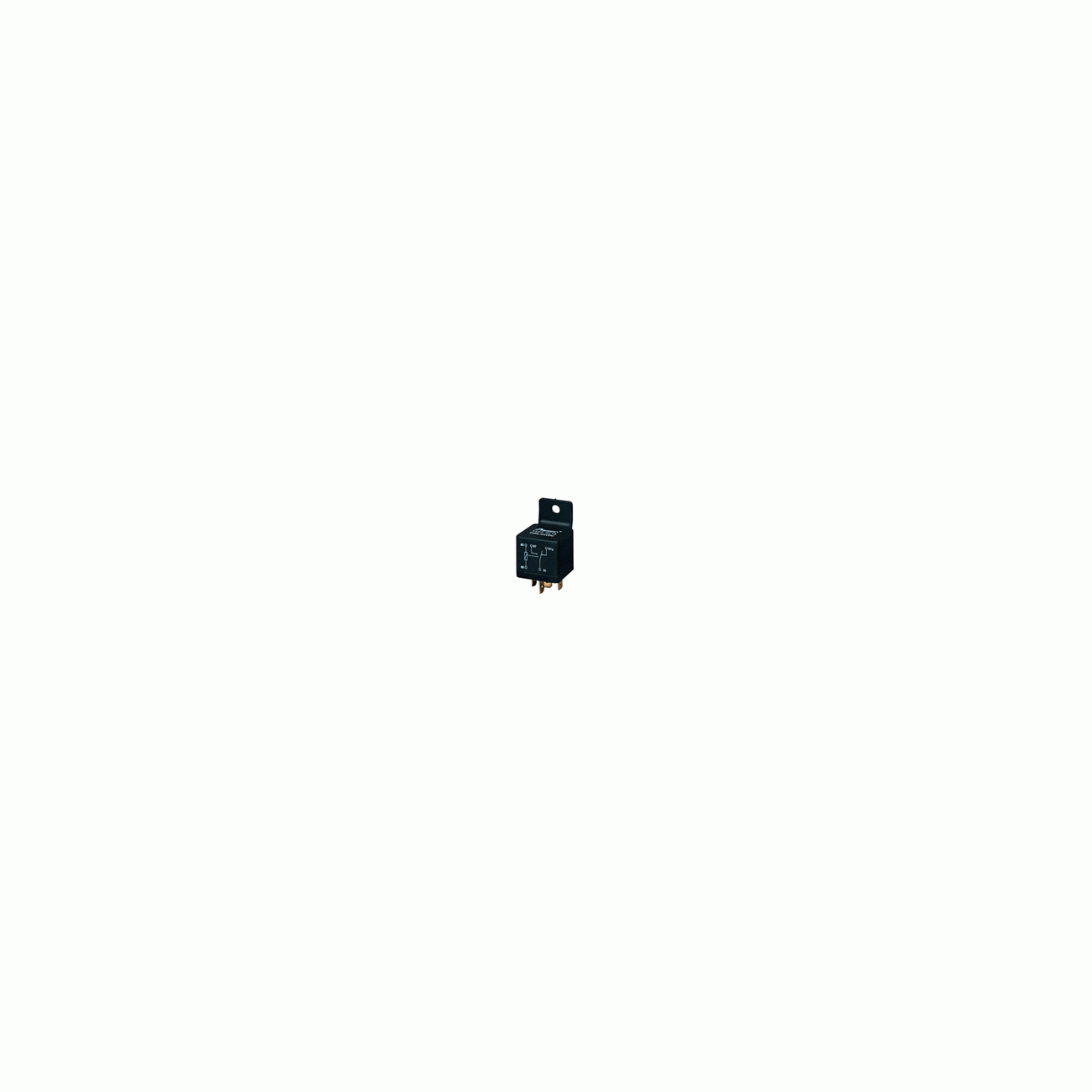

Automotive relay ASIAON 12V RL15 30A
Click to enlarge
Share:
relay AS403 auto relay RL15
- Manufacturer: ASIAON
- Item Code: I5RL15DC12V30A
- Help Code: RL15DC12V
-
Availability:
Call us
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Specifications
Automotive relay, auto relay AS403, RL15.4pins relay and 5pins relay RL15
suitable for automobile
PC board mounting
automotive relay AS403
Contact Specification | ||||
Contact form | 1H,1Z | |||
Contact resitance | ≤50mΩ(1A 6VDC) | |||
Contact material | AgCdO AgSnO2 | |||
Contact capacity | 30A 12VDC | |||
| ||||
Technical Specification | ||||
Insulation resistance | ≥50 mΩ(500VDC) | |||
Dielectric strength | Between coil and contacts≥500VAC 1min | |||
Between open contacts≥500VAC 1min | ||||
Operate/Release time | ≤15ms/10ms | |||
Terminal type | Quick terminal mounting | |||
| ||||
Coil Specification | ||||
Rated coil power | 1.8W | |||
| ||||
Coil Data | ||||
Nominal voltage | Operate voltage | Release voltage | Coil resistance | |
VDC | VDC | VDC | Ω±10% | |
5 | 3.5 | 0.5 | 16 | |
6 | 4.2 | 0.6 | 20 | |
12 | 8.4 | 1.2 | 85 | |
24 | 16.8 | 2.4 | 320 | |
