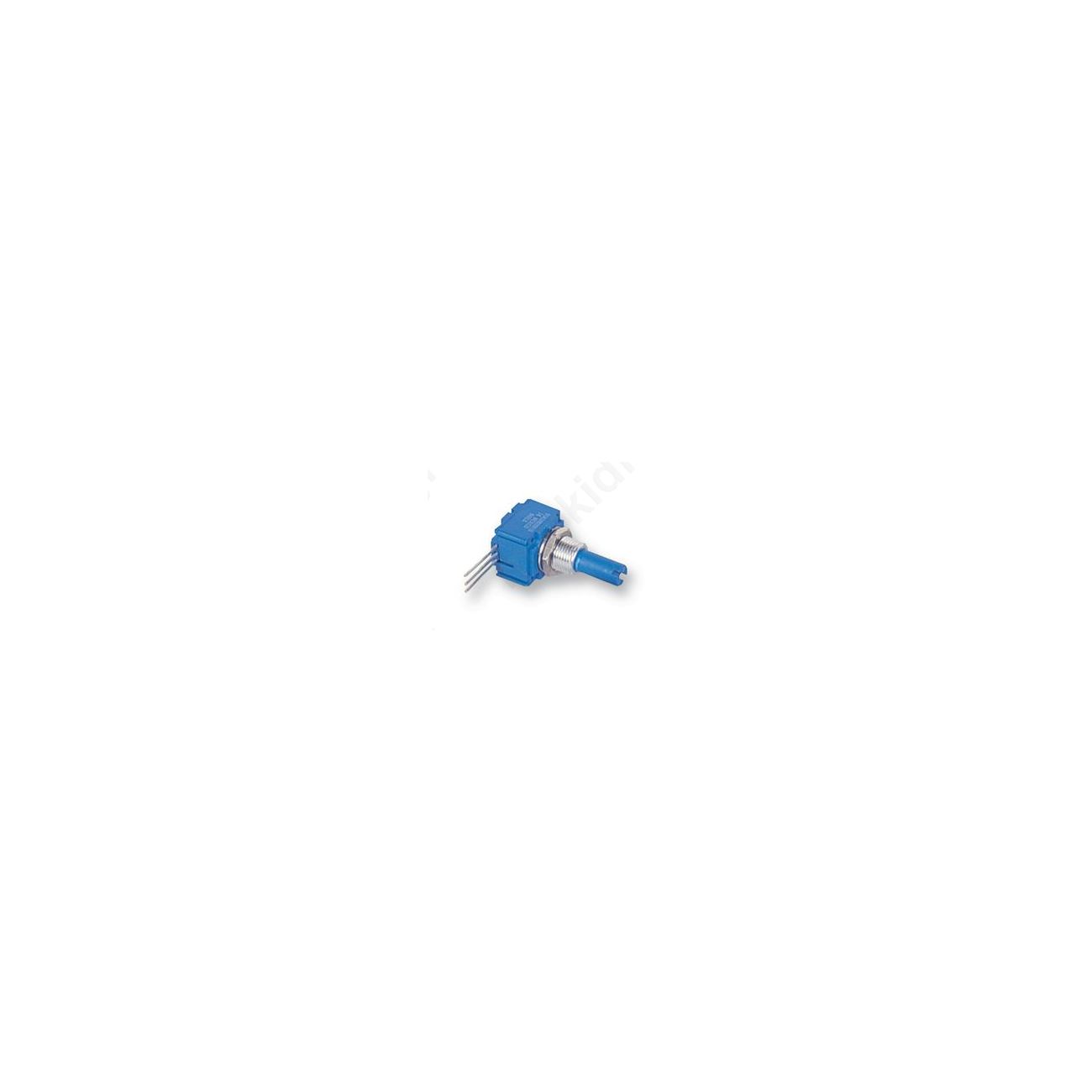

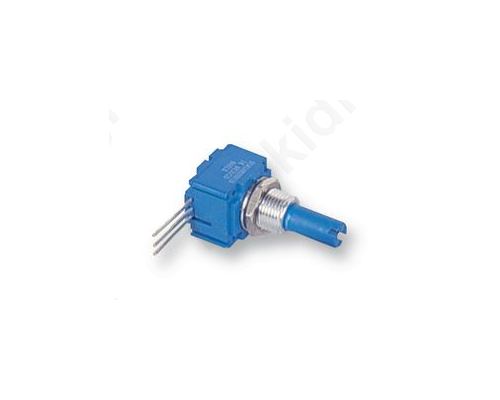

BOURNS - 91A1A-B28-B15L - POTENTIOMETER, 10K
Click to enlarge
Share:
BOURNS - 91A1A-B28-B15L - POTENTIOMETER, 10K
- Manufacturer: BOURNS
- Item Code: 505049310002
- Help Code: 10ΚΩ
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
- POTENTIOMETER, 10K
- Track Resistance: 10kohm
- Track Taper: Linear
- No. of Turns: 1
- Shaft Diameter: 6.35mm
- Shaft Length - Metric: 22.2mm
- Resistance Tolerance: ± 20%
- Voltage Rating: 350VAC
- Power Rating: 1W
- Potentiometer Mounting: Through Hole
- No. of Gangs: 1
- Adjustment Type: Shaft
- SVHC: No SVHC (20-Jun-2013)
- Contact Resistance Variation +: 1%
- Electrical Angular Rotation Tolerance +: 5°
- Electrical Angular Rotation Tolerance -: 5°
- External Depth: 12.7mm
- External Length / Height: 17.5mm
- External Width: 15.9mm
- Full Power Rating Temperature: 70°C
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Mounting Type: PCB Through Hole
- Operating Temperature Max: 125°C
- Operating Temperature Min: 1°C
- Operating Temperature Range: +1°C to +125°C
- Proof Voltage: 1000V
- Resistance: 10kohm
- Resistor Element Material: Conductive Plastic
- Rotation Electrical Angle: 240°
- Rotation Mechanical Angle: 300°
- Series: 91
- Temperature Coeff. +: 1000ppm/°C
- Temperature Coeff. -: 1000ppm/°C
