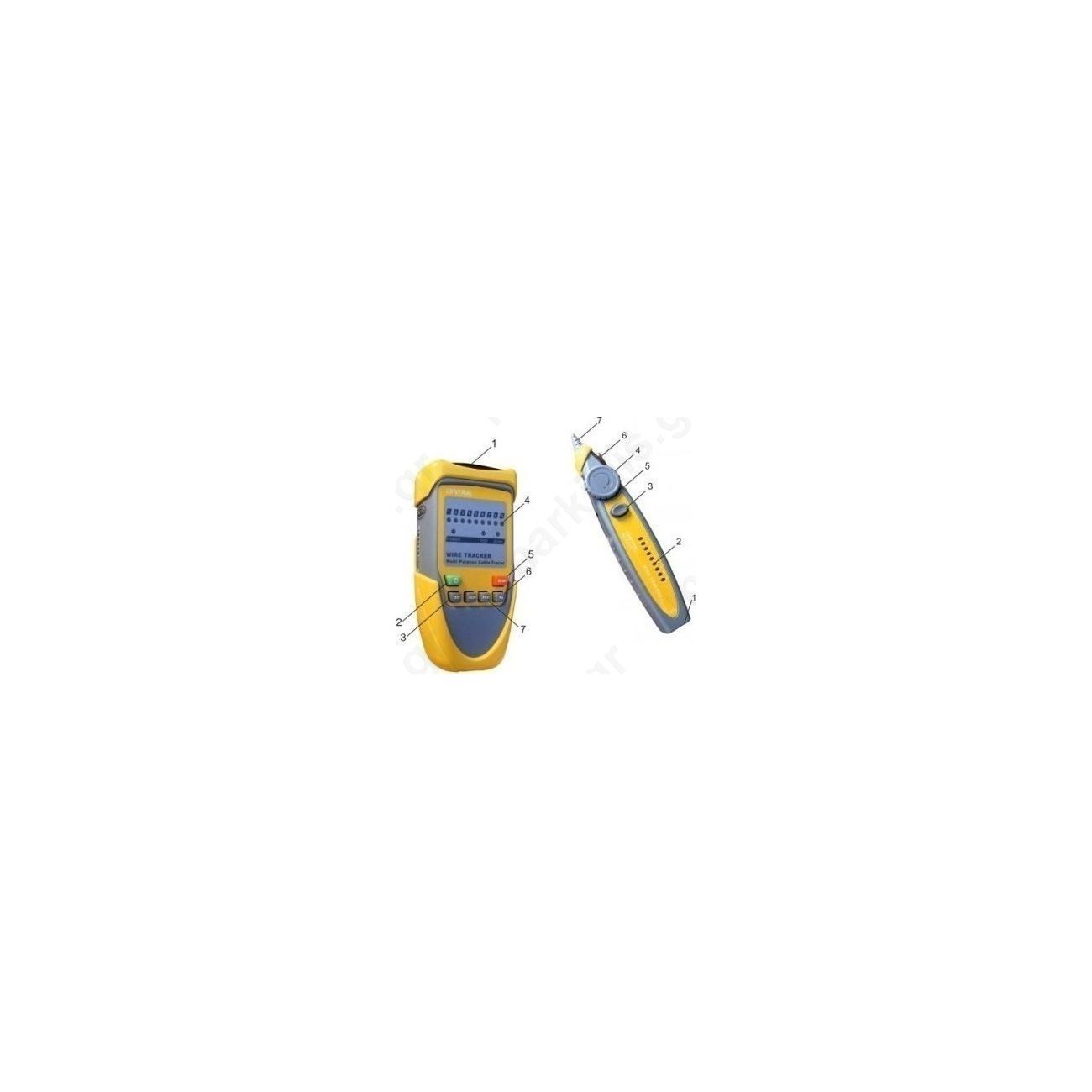

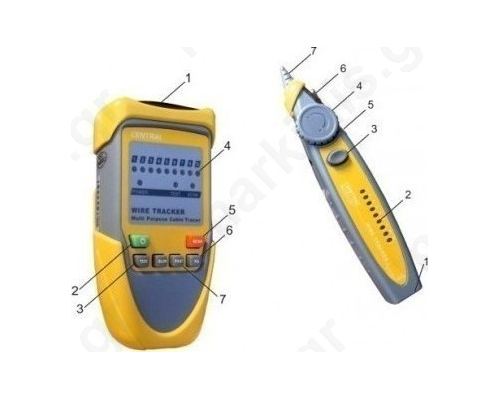

Generator - Detector & Monitor With CAT5E - 6
- Manufacturer: CENTRAL
- Item Code: 316041100001
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
BASIC OPERATIONS
A. IDENTIFICATION telephone pair (GENERATOR - DETECTOR)
Suitable for simple til.grammes and ADSL (PSTN-ISDN)
Always used in conjunction with each other for easy identification between pairs of telephone wires crowd (low voltage).
USE: Place the two limits of the generator at the ends of wire pair that we want to track down, this produces a distinctive two tone audible signal. The pair of locating the other end (e.g. the distributor) is achieved by gradually increasing intensity (duotone) audio signal received by the inductive probe and the approach, only a few millimeters from the surface of the pair of wires and where peak intensity of two tone audible signal at the detector, locate the desired pair.
It offers surge protection - bracelet / Matos 0 - 100V / AC
B. CONTROL CABLE CONDUCTOR WEBSITES CAT5E- CAT6 (BODY CONTROL)
USE: Place one end of the analog cable (RJ45) connector on the rear of the generator by moving the DIP switch of the generator in test position and then connect the other end to the detector behind reception.
Observe that led to two instruments illuminate sequentially as a result we can control like a classic continuity tester or otherwise of conductors.

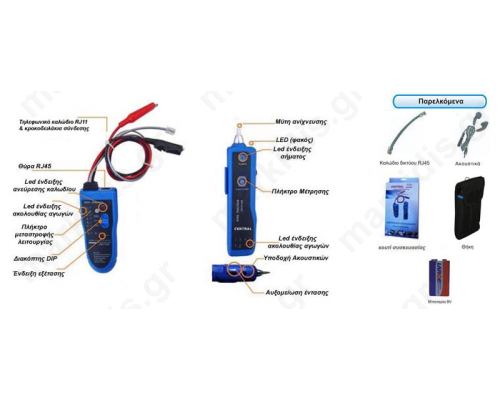

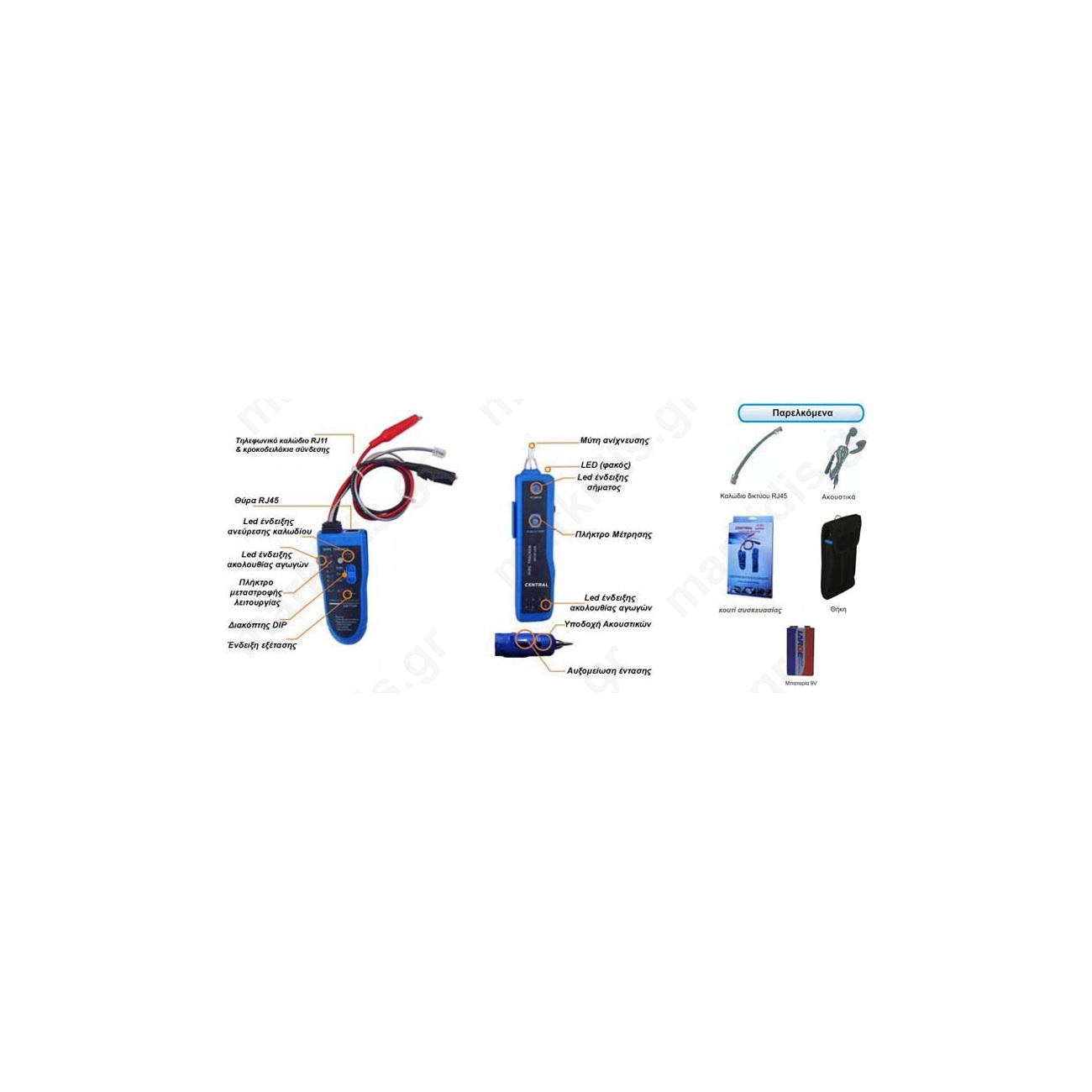

The package includes:
Batteries 9V, 2 pieces
Headset
Call test RJ11 cable
Network test cable RJ45
Special detachable alligator
Connection (to withstand continuous use)
Special zone support case
Instructions For Use
