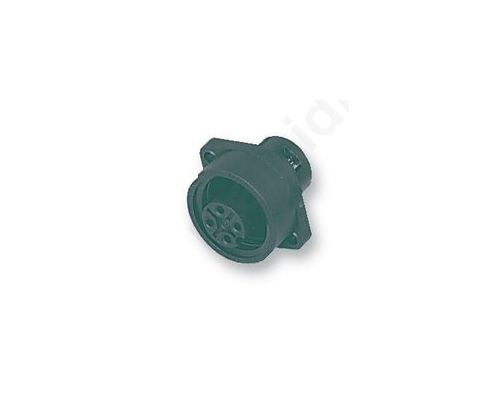

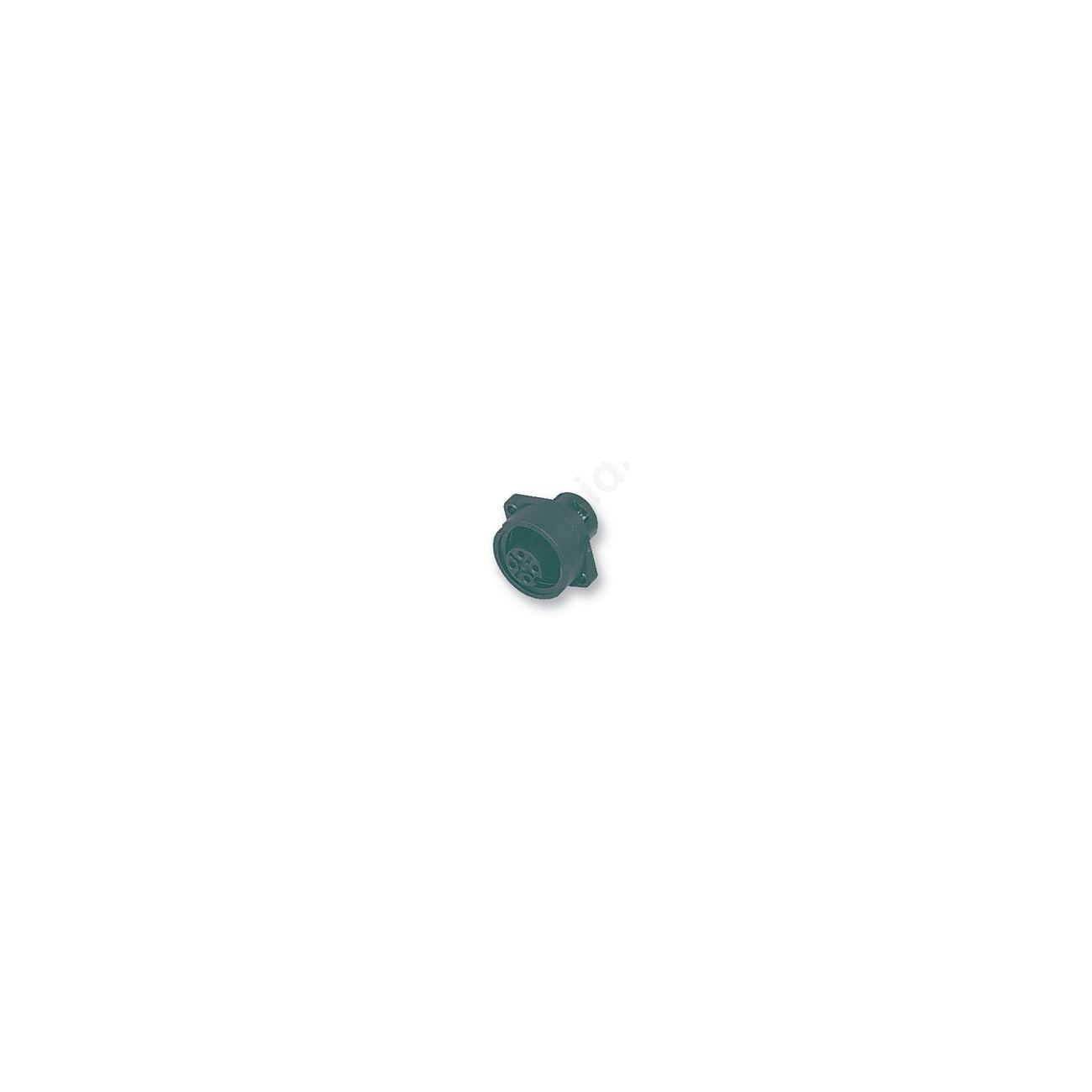

CONNECTOR RCPT 6+1 WAY PANEL FEMALE

Click to enlarge

Item Code: 830045110001
Availability: In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.

16.30€ 16.3 VAT included

Item Description

Product Information

CIRCULAR CONNECTOR, RCPT, 6 WAY, PANEL
Connector Type: Circular Industrial
Series: -
Connector Body Material: Glass Filled Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Pin
Connector Mounting: Panel
Connector Shell Size: -
Insert Arrangement: -
No. of Contacts: 6
Contact Termination: Solder
Contact Material: Brass
Contact Plating: Silver
SVHC: No SVHC (16-Jun-2014)
Approval Bodies: DIN, SEV, UL, VDE
Cable Diameter Max: 12mm
Cable Diameter Min: 6mm
Contact Resistance: 5mohm
Current Rating: 10A
IP / NEMA Rating: IP67
Operating Temperature Max: 90°C
Operating Temperature Min: -40°C
Working Voltage: 250V

Bend protection Series DS/MS Case 14.3mm

1.50€

Item Code:I80IT3420-10
Help Code: IT3420-10

In Stock

7 ΠΟΛΙΚΟ APΣENIKO ΚΑΛΩΔΙΟΥ

DS3106F16S-1P Connector: military; Series: DS/MS; plug; male; PIN:7; for cable

31.50€

Item Code:I80IT3106F16S1P
Help Code: DS3106F16S-1P

In Stock

7 ΠΟΛΙΚΟ ΘΗΛΥΚΟ ΚΑΛΩΔΙΟΥ

Connector: military; Series: DS/MS; plug; female; PIN:7; for cable

36.90€

Item Code:I80IT3106F16S1S
Help Code:

In Stock

Connector circular Series DS/MS plug female PIN 26 for cable

82.00€

Item Code:800035002013
Help Code:

In Stock

CONNECTOR, CA6LS, 6+PE WAY; Connector Type:Circular Industrial; Connector Body Material:Glass Filled Nylon; Gender:Plug; Connector Mounting:Cable; No. of Contacts:6; Contact Termination:Solder....

Connector circular Series CA male plug 250V 10A IP67

16.90€

Item Code:505045110004
Help Code:

In Stock

CONNECTOR, CA3LS, 3+PE WAY; Connector Type:Circular Industrial; Connector Body Material:Glass Filled Nylon; Gender:Plug; Connector Mounting:Cable; No. of Contacts:3; Contact Termination....

CA3LS Connecto: circular Series CA male plug 400V 16A IP67

22.30€

Item Code:505045110002
Help Code:

In Stock

SOCKET, CABLE, CA6LD, 6+PE WAY; Connector Type:Circular Industrial; Connector Body Material:Glass Filled Nylon; Gender:Receptacle; Connector Mounting:Cable; No. of Contacts:6; Contact Termination:Solder.....

Connector Female CA Series 7 Pole Straight Cable Mount Circular Contacts, IP67

14.20€

Item Code:505045110003
Help Code:

In Stock

Manufacturer CONNFLY Connector plug, socket Type of connector circular Connector series DS1110-08 Number of pins 5 Connector variant with cable clamp Locking system threaded joint Contact plating silver plated Enclosure material aluminium
