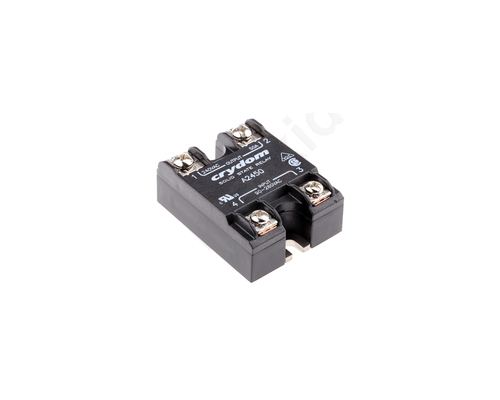

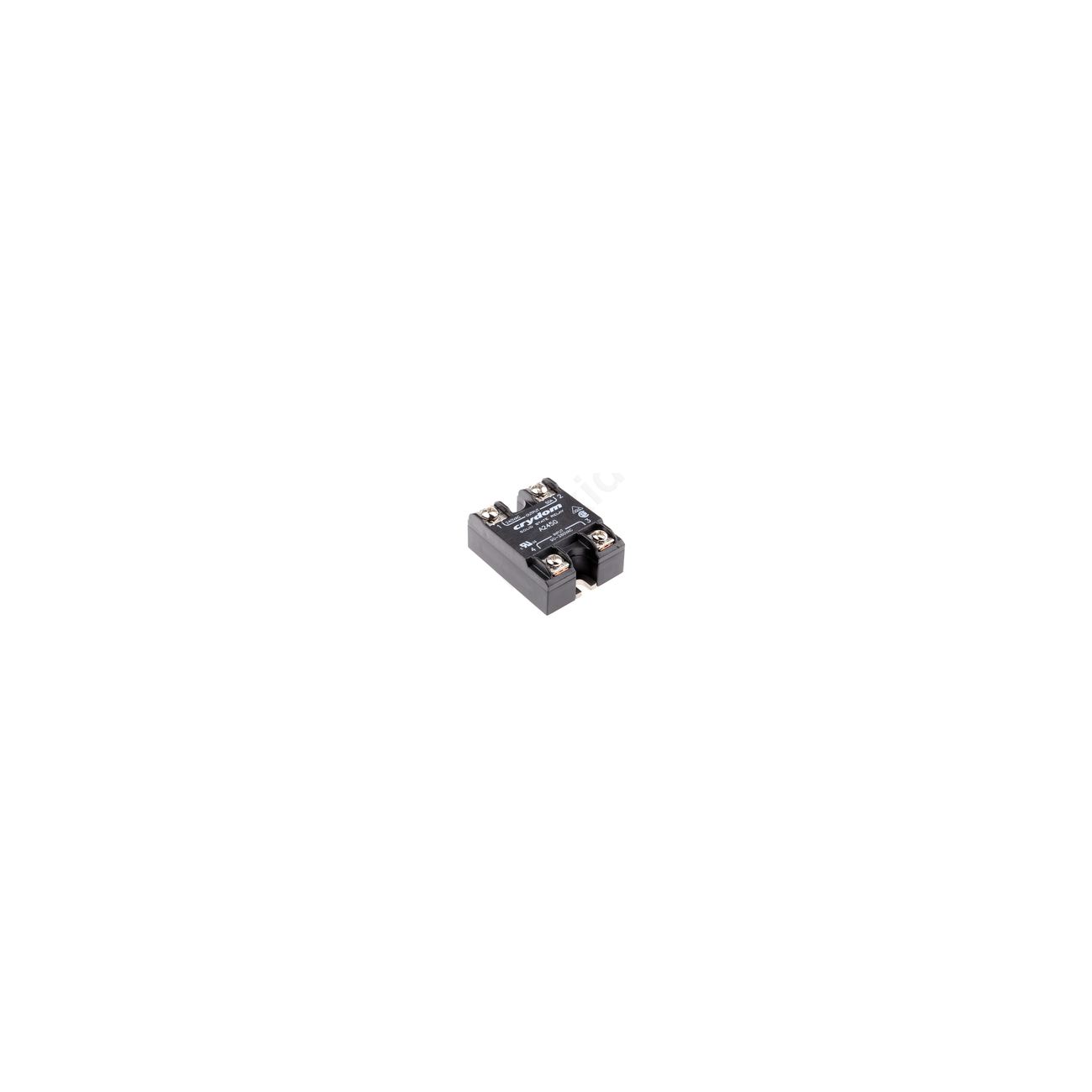

Solid State Relay, 280 V rms,50 A rms Surface Mount, Zero Crossing SCR
- Manufacturer: CRYDOM
- Item Code: 530016910004
- Help Code: A2450
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
| Depth | 45.7mm | |
| Dimensions | 58.4 x 45.7 x 23mm | |
| Height | 23mm | |
| Length | 58.4mm | |
| Maximum Control Voltage | 280 V rms | |
| Maximum Load Current | 50 A rms | |
| Maximum Load Voltage | 280 V rms | |
| Minimum Load Current | 40 mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature Range | -40 → +80°C | |
| Output Device | SCR | |
| Switching Type | Zero Crossing | |
| CAD Drawing | 3D CAD Model | |
| Control Voltage Range | 90 → 280 V ac | |
| Load Voltage Range | 24 → 280 V ac |
