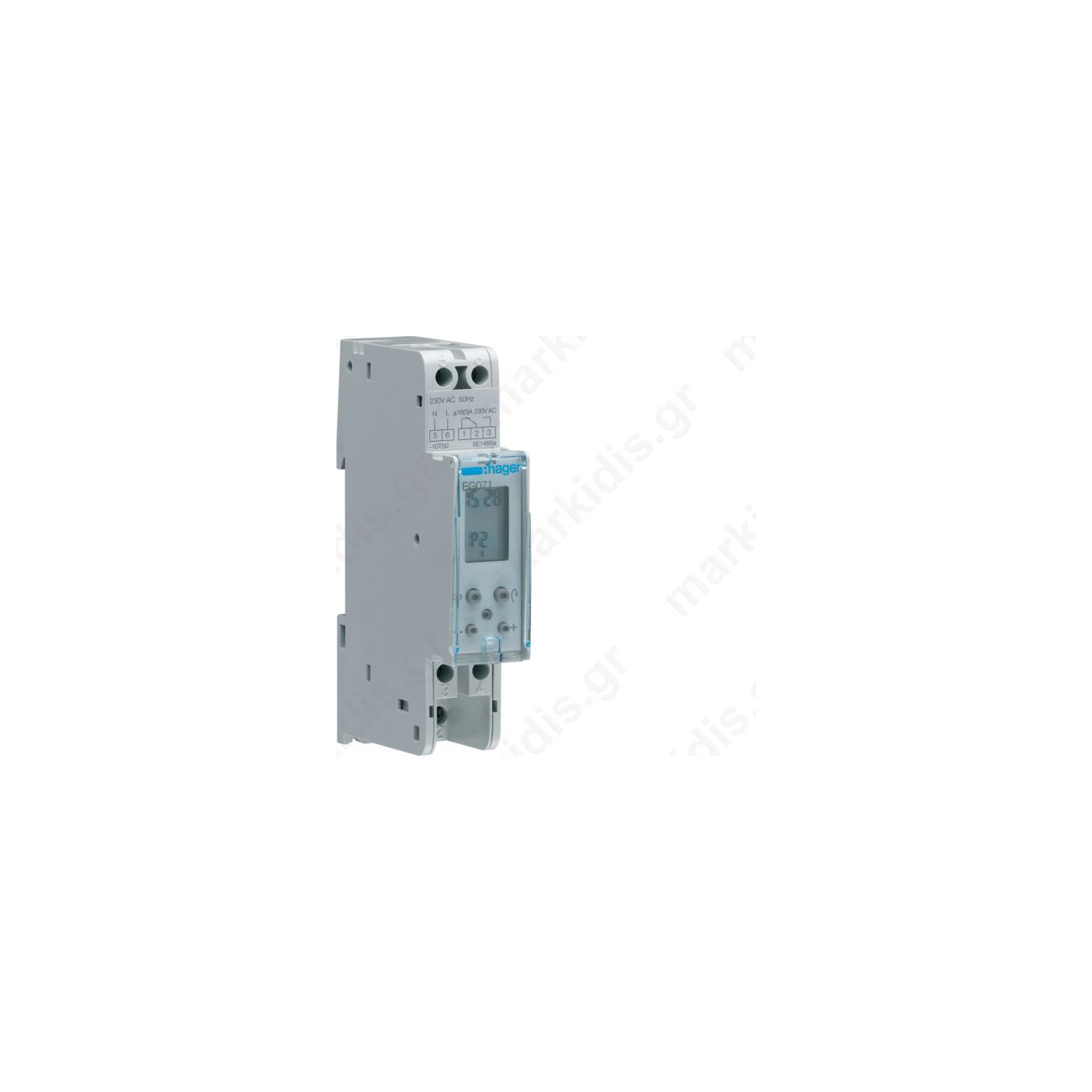

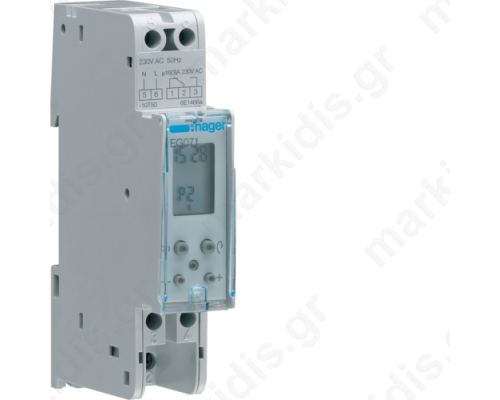

EG071 1 channel weekly programmer
Click to enlarge
Share:
- Manufacturer: HAGER
- Item Code: 693052710000
- Help Code: EG071
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
| Technical Characteristics | |
|---|---|
| Type of programming: | digital |
| Cycle: | weekly |
| Shortest switching time: | 1 mn |
| Type of contacts: | 1 changeover |
| Rated operational AC voltage: | 230 V |
| Supply failure reserve: | 3 years |
| Breaking capacity: | 16A 250V AC1 |
| Max. power with incandescent lamps: | 1000 W |
| type of connection: | with screw |
| Number of modules: | 1 |
| Acceptable current rating with AC1: | 16 A |
| Connection cross-sect. flexible cable: | 1 / 4mm² |
| Connection cross-sect. rigid cable: | 1 / 4mm² |
| Dissipated energy in cable: | 2 W |
| European directive RoHs: | not concerned |
| European directive WEEE: | not concerned |
| Fixing mode: | Din-Rail |
| Frequency: | 50 Hz |
| Number of channels: | 1 |
| Number of contacts: | 1 |
| Number of program steps: | 20 |
| Operating temperature: | -10 to 50 °C |
| Storage temperature: | -10 to 60 °C |
| Protection index IP: | 20 |
| Summer / Winter time change: | manual |
| Type of programmable thermostat: | Digital |
