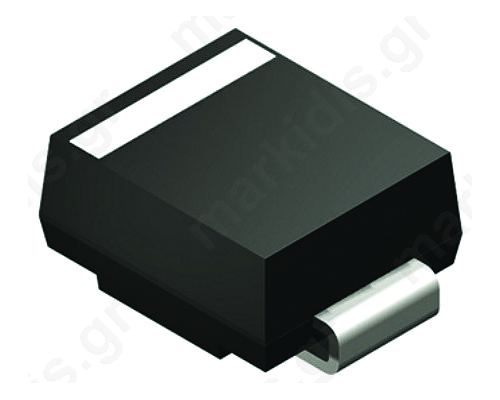

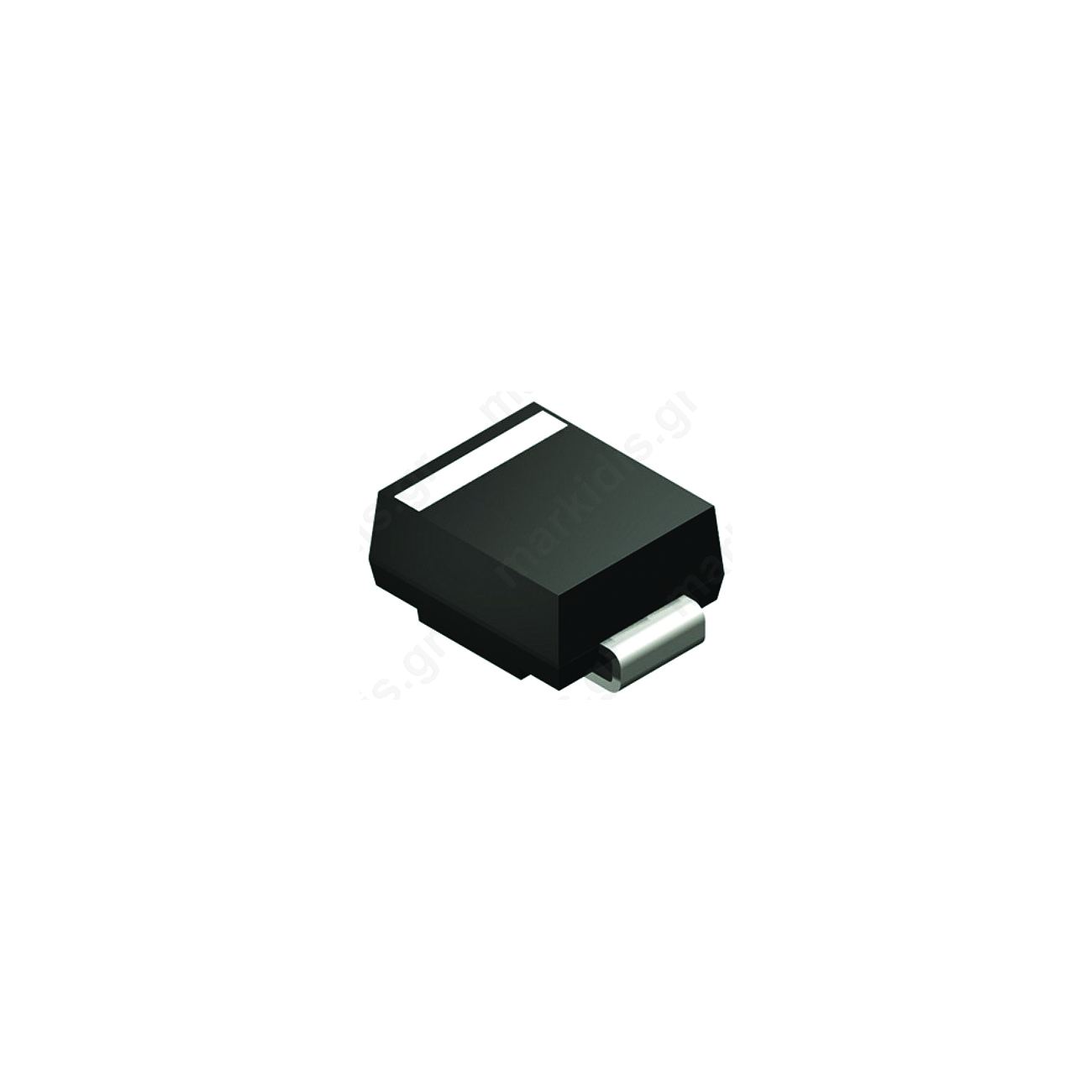

Vishay P6SMB440A-E3/52, Uni-Directional TVS Diode, 602V, 600W, 2-Pin DO-214AA
Click to enlarge
Share:
- Manufacturer: VISHAY
- Item Code: 530013210003
- Help Code: P6SMB440A-E3/52
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
| Configuration | Single | |
| Direction Type | Uni-Directional | |
| Maximum Clamping Voltage | 602V | |
| Maximum Peak Pulse Current | 1A | |
| Minimum Breakdown Voltage | 418V | |
| Maximum Reverse Stand-off Voltage | 376V | |
| Maximum Reverse Leakage Current | 1µA | |
| Mounting Type | Surface Mount | |
| Package Type | DO-214AA | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 600W | |
| Number of Elements per Chip | 1 | |
| Test Current | 1mA | |
| Width | 3.94mm | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +150 °C | |
| Height | 2.24mm | |
| Length | 4.57mm | |
| Dimensions | 4.57 x 3.94 x 2.24mm |
