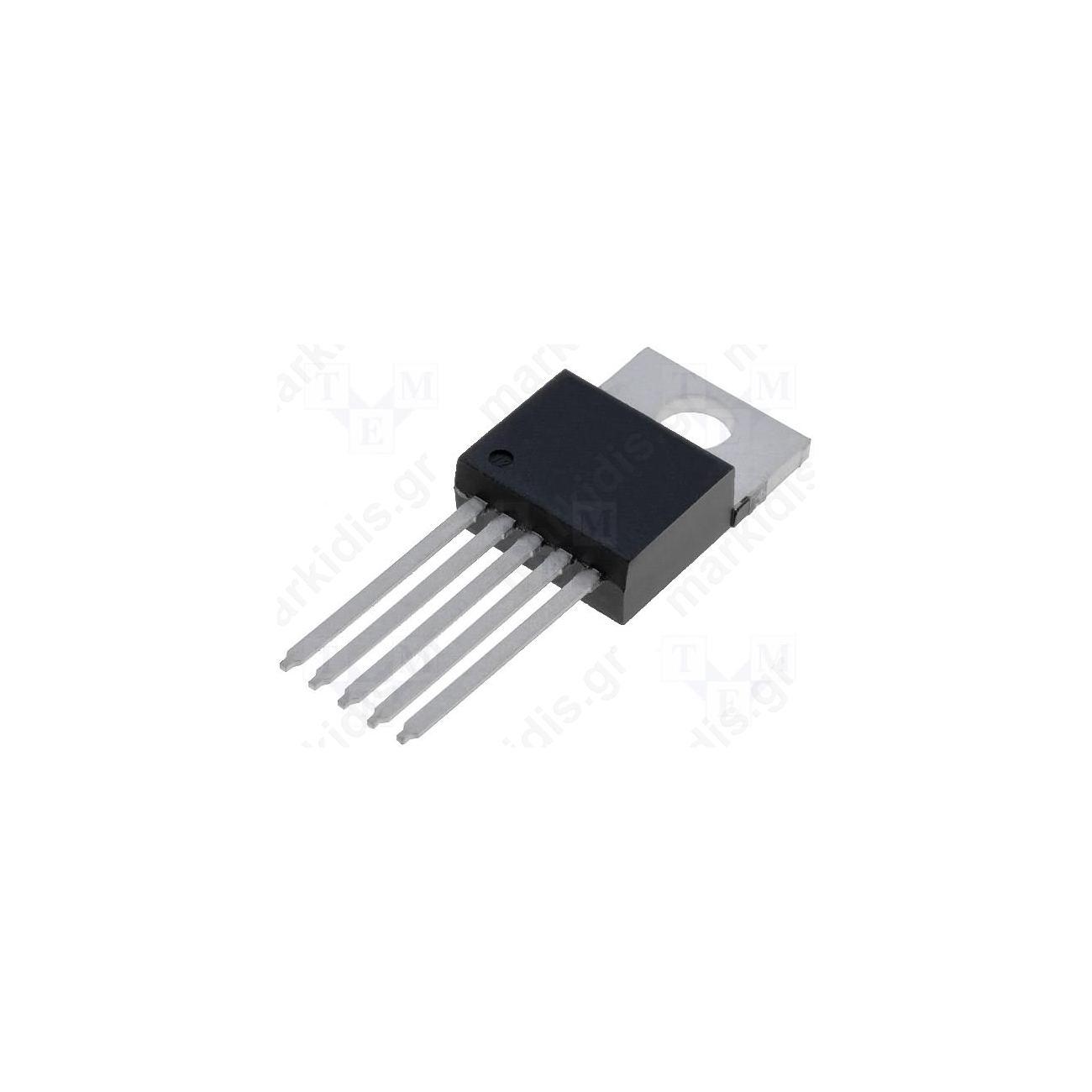

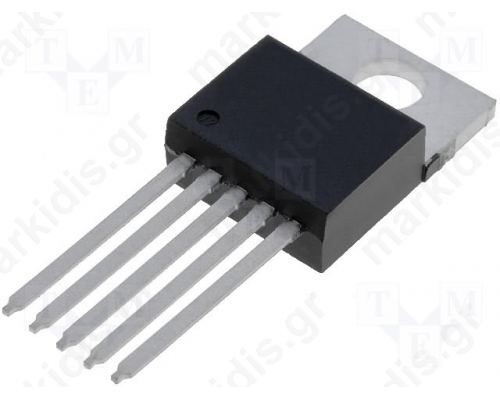

LM2576T-ADGJ Step Down DC-DC Converter 5-Pin TO-220
Click to enlarge
Share:
- Item Code: 165003016001
- Help Code: LM2576T-ADGJ
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Maximum Operating Temperature +85 °C
Length 10.67mm
Number of Outputs 1
Brand Microchip
Package Type TO-220
Minimum Input Voltage 4 V
Converter Type Step Down
Mounting Type Through Hole
Minimum Operating Temperature -40 °C
Width 4.83mm
Height 9.17mm
Maximum Switching Frequency 0.058 MHz
Output Type Fixed
Pin Count 5
Dimensions 10.67 x 4.83 x 9.17mm
Switching Regulator Yes
Maximum Input Voltage 40 V
Maximum Output Current 3A
Efficiency 82%
Maximum Output Voltage 37 V
Minimum Output Voltage 1.23 V
