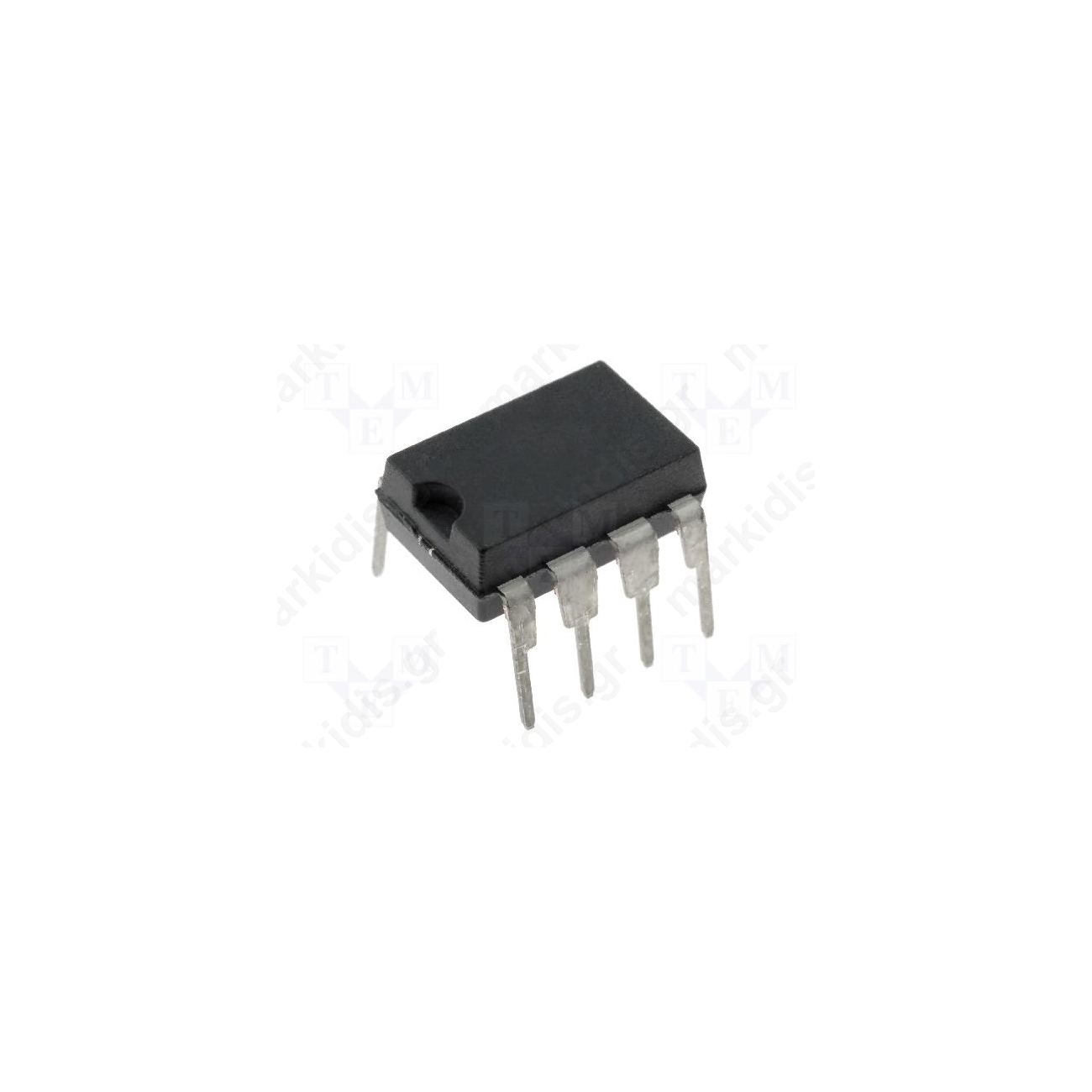

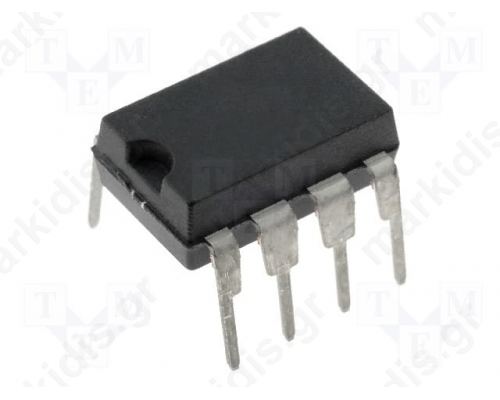

LM380N-8/NOPB Audio Amplifier, 8-Pin MDIP Mono
Click to enlarge
Share:
- Manufacturer: TEXAS INSTRUMENTS
- Item Code: 000003016072
- Help Code: LM308N
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Maximum Operating Temperature +70 °C
Length 9.27mm
Typical Single Supply Voltage 12 V, 15 V, 18 V
Output Signal Type Single Ended
Brand Texas Instruments
Power Supply Type Single
Maximum Power 2.5 W @ 8 Ω
Package Type MDIP
Input Signal Type Differential
Mounting Type Through Hole
Minimum Operating Temperature 0 °C
Width 6.35mm
Height 3.3mm
Output Type 1 Channel Mono
Pin Count 8
Dimensions 9.27 x 6.35 x 3.3mm
Amplifier Type Class-AB
Application Speaker
