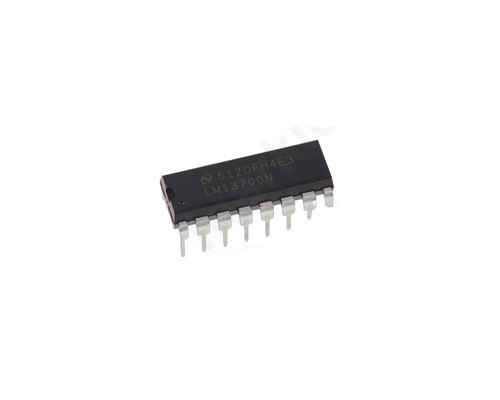

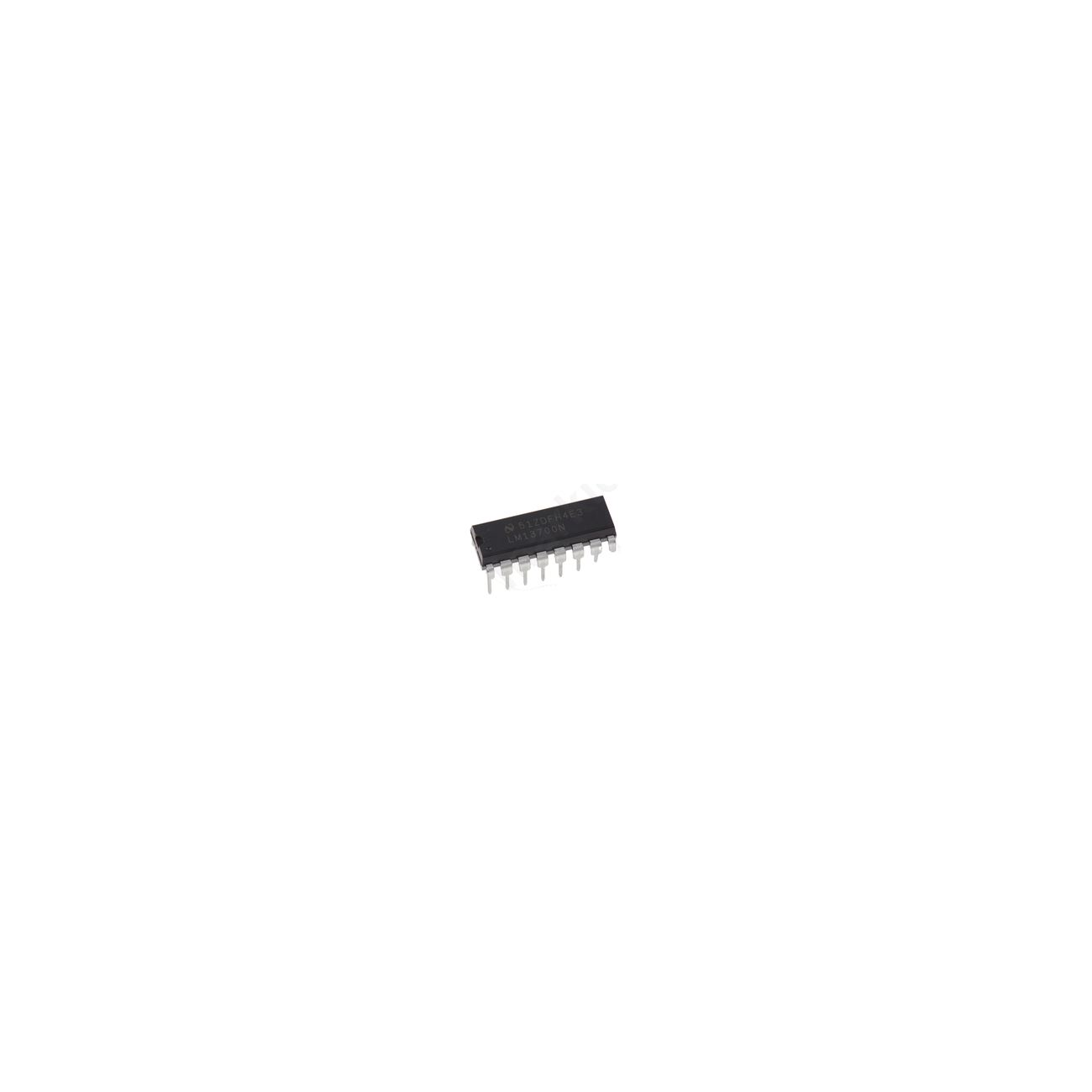

Transconductance Amplifier LM13700N 3>28 V, 16-Pin MDIP
Click to enlarge
Share:
- Manufacturer: TEXAS INSTRUMENTS
- Item Code: 034003016008
- Help Code: LM13700N
-
Availability:
Pre-Order
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Number of Channels per Chip 2
Maximum Operating Temperature +70 °C
Length 19.05mm
Typical Single Supply Voltage 3-28 V
Typical Slew Rate 50V/΅s
Brand Texas Instruments
Power Supply Type Dual, Single
Package Type MDIP
Mounting Type Through Hole
Minimum Operating Temperature 0 °C
Width 6.35mm
Height 3.3mm
Output Type Push-Pull
Pin Count 16
Dimensions 19.05 x 6.35 x 3.3mm
Typical Gain Bandwidth Product 2MHz
Typical Dual Supply Voltage ±12 V, ±15 V, ±9 V
Amplifier Type Transconductance
