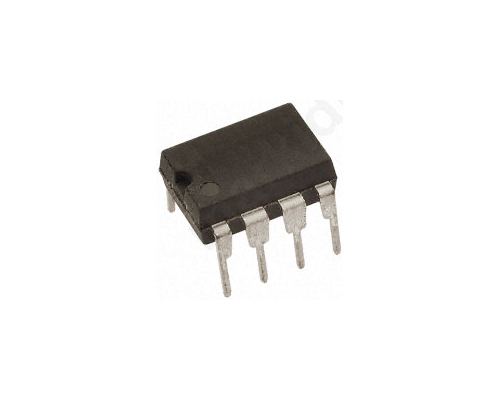

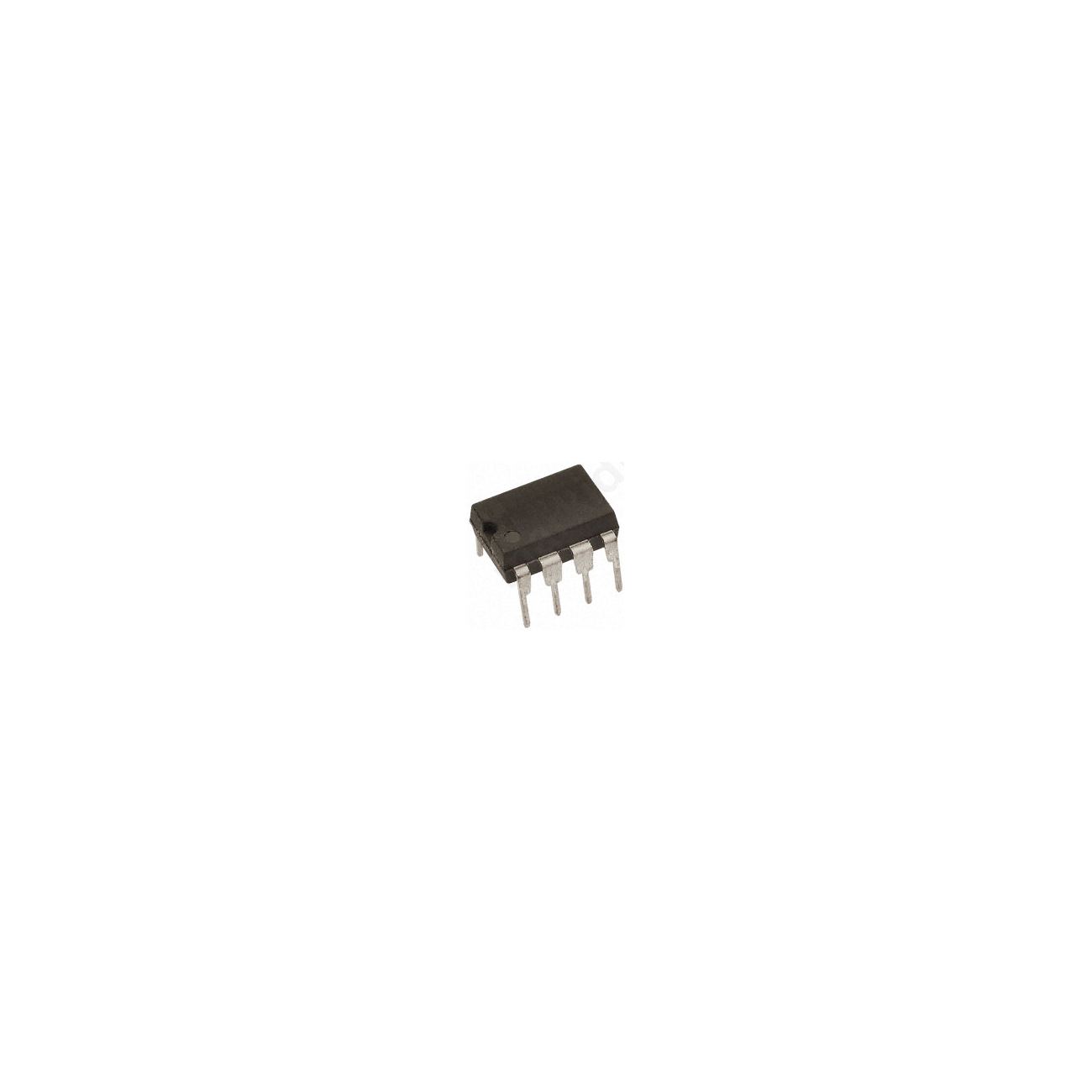

LM833NG, Dual Op Amp, 15MHz, 8-Pin PDIP
Click to enlarge
Share:
- Item Code: 530068110011
- Help Code: LM833NG
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Maximum Operating Temperature +85 °C
Number of Channels per Chip 2
Length 10.16mm
Typical Slew Rate 7V/΅s
Typical Voltage Gain 110 dB
Brand ON Semiconductor
Power Supply Type Dual
Package Type PDIP
Mounting Type Through Hole
Minimum Operating Temperature -40 °C
Width 6.6mm
Typical Input Voltage Noise Density 4.5nV/?Hz
Rail to Rail No
Height 3.44mm
Pin Count 8
Dimensions 10.16 x 6.6 x 3.44mm
Typical Gain Bandwidth Product 15MHz
Typical Dual Supply Voltage ±12 V, ±15 V, ±9 V
