457203 TAP-OFF 4 ways 11dB
Click to enlarge
Share:
- Item Code: EDSN084723
- Help Code: 12-19-0008
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description

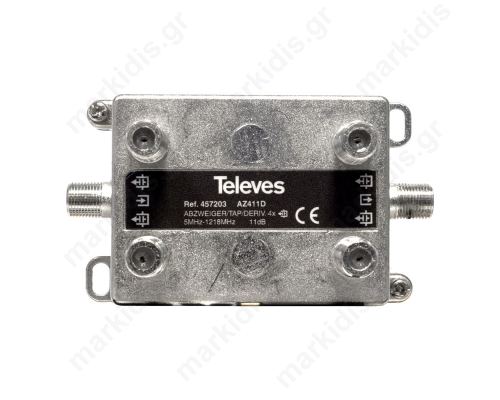

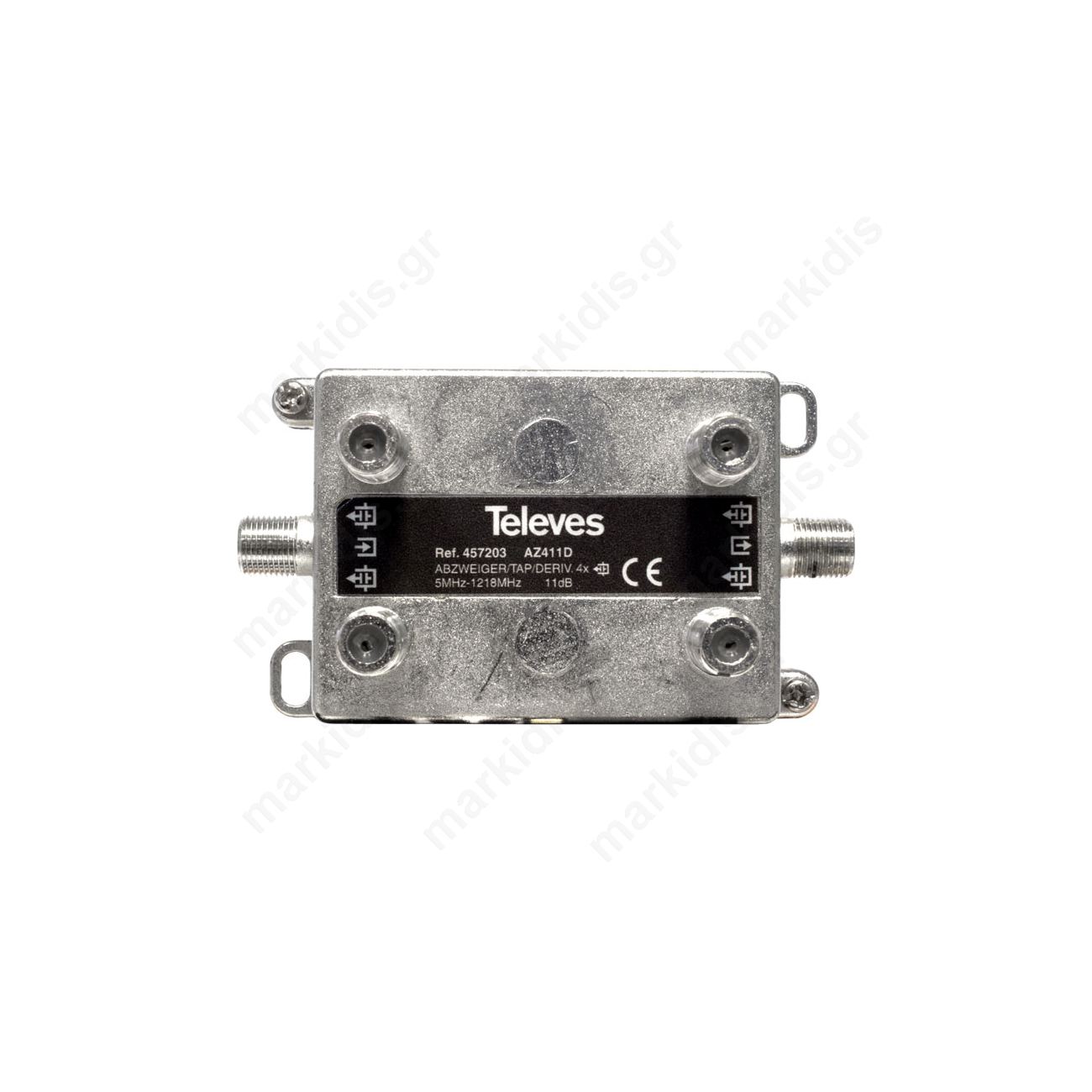

TELEVES 457203 TAP-OFF 4 ways 11dB is a tap splitter, equipped with 4 tap ways and F connectors for SCATV signals. It is designed for indoor installation or with use of protective box when installed outdoors. DOCSIS 3.1 compatible.Technical features:
- DOCSIS 3.1 compatible
- F connectors
- Outstanding shielding
- Grounding screw provided
- Bidirectional DC pass 1Α maximum, between input and pass output
- Band MHz: 5-1218
- Rejection between taps >20
- Number of outputs: 4
- Tap loss dB: 11
- Through losses: 4.0 dB
- Rejection between taps: >20
- Dimensions: mm 66x56x20
