LCR meter; LCD (66,8x52,8); 20/200/2k/20k/200k/2M/20M/200MΩ
Click to enlarge
Share:

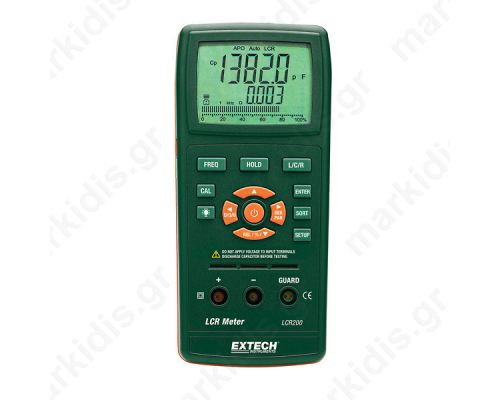

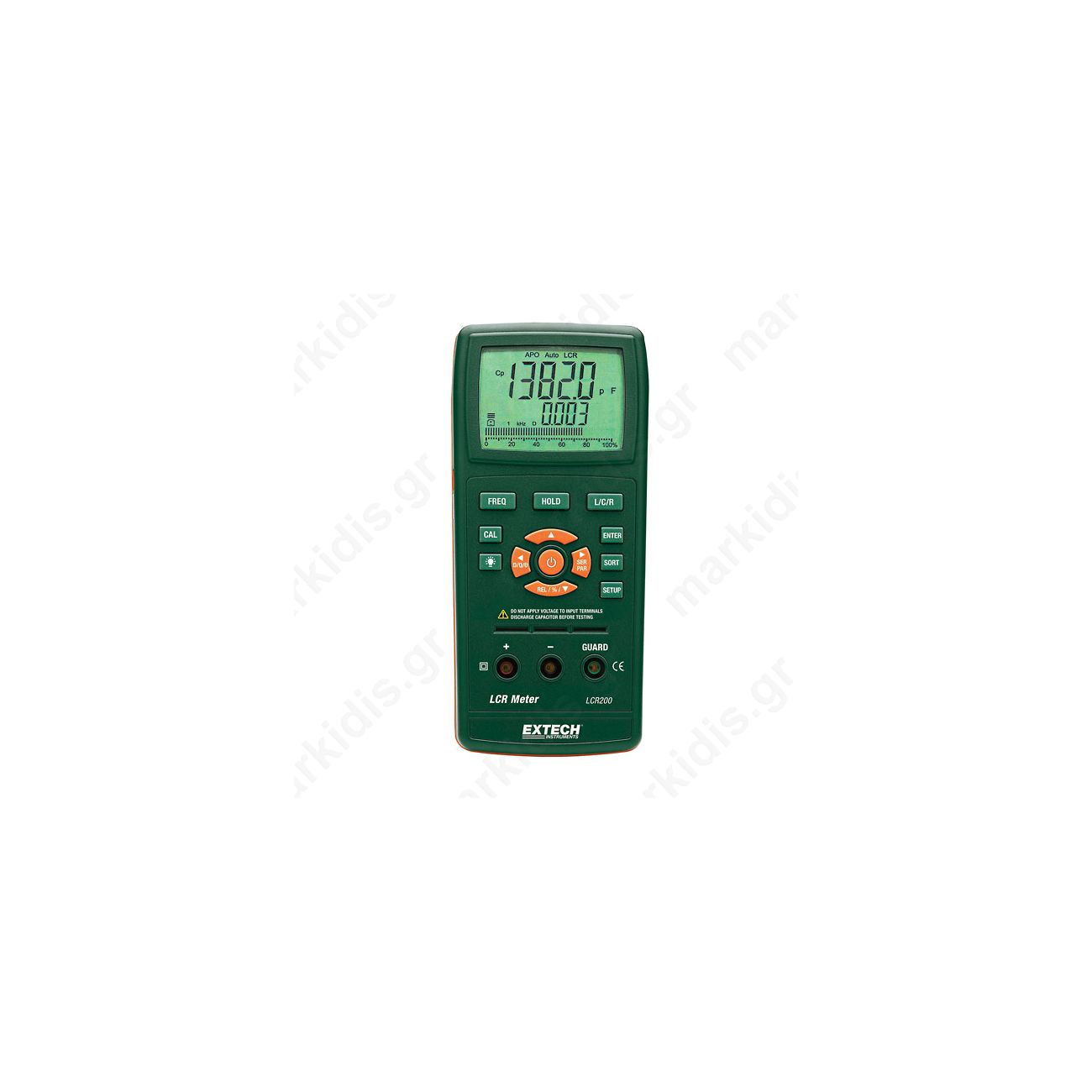

EXTECH LCR200 - LCR bridge LCD
- Manufacturer: EXTECH
- Item Code: 800049810000
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Specification
| LCR bridge | |
| LCD (66,8x52,8) | |
| 20/200/2k/20k/200k/2M/20M/200MΩ | |
| ±(0,5% + 5 digits) | |
| 20p/200p/2n/20n/200n/2µ/20µ/200µ/2m/20mF | |
| ±(0,5% + 5 digits) | |
| 20µ/200µ/2m/20m/200m/2/20/200/2000H | |
| ±(0,5% + 5 digits) | |
| 0...1999 | |
| 100Hz, 100kHz, 10kHz, 120Hz, 1kHz | |
| 0...1999 | |
| 193 x 88 x 41mm | |
| 385g | |
| 1 battery 9V 6F22 | |
| test leads |
- autoranging
- automatic power-off
- HOLD function
- REL function
- RS232 interface
- backlit LCD
- parallel or serial measurement
- measurement quality factor Q, dissipation factor D and phase angle θ
- low battery indicator
