ΦΩΤΟΚΥΤΑΡΟ ΜΕ ΑΝΑΚΛΑΣΤΗΡΑ WL18-3P430 7M PNP M12/4
Click to enlarge
Share:
- Item Code: 575050710007
- Help Code: WL18-3P430
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description

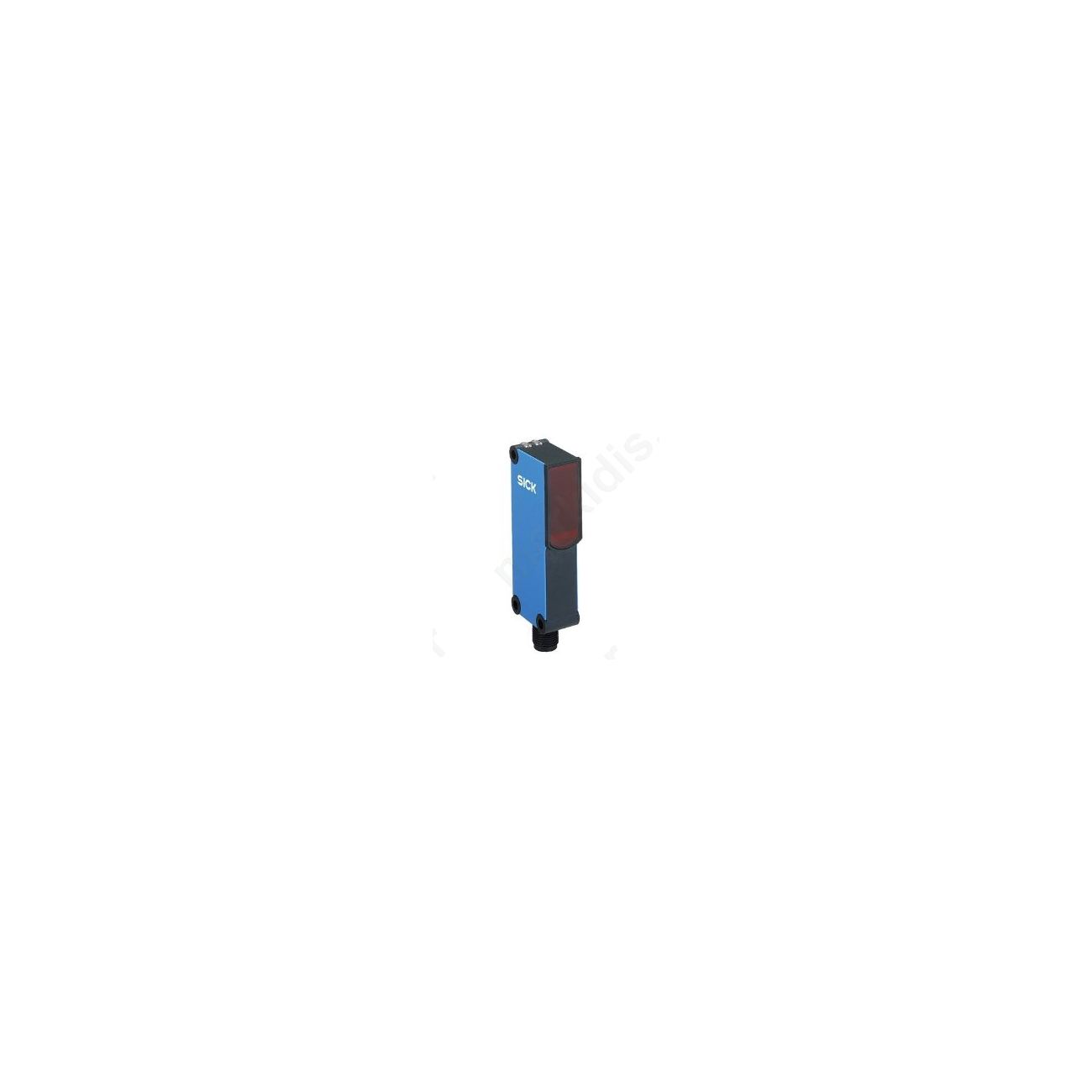

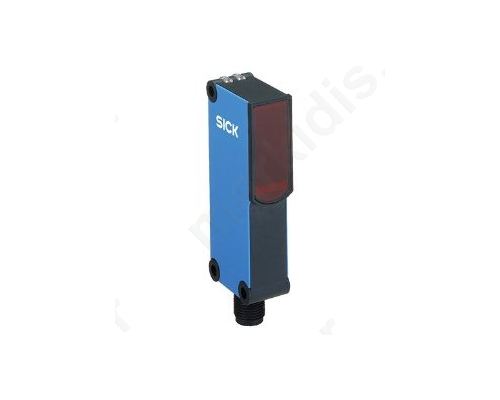

SICK WL18-3P430 Overview
Photoelectric reflex Switch WL18-3P430 red light, with polarization filter, PNP, complementary outputs, plug M12, 4 pinSICK WL18-3P430 Description
- Sender LED with visible red light
- Autocollimation optics with polarizing filter
- Sensitivity control via potentiometer
- Insensitivity to ambient light
- Optional: Test input for system diagnostics
- Rugged plastic housing
- Fast installation due to highly visible red light
- Reliable object detection without blind zones, even for reflective objects, thanks to autocollimation optics and polarizing filter
- Comfortable and fast sensing distance setting due to 270° potentiometer
- No interference from ambient light or devices mounted opposite one another
- Reliable availability in the field
Your benefits
| Features | |
| Dimensions (W x H x D):: | 17.6 mm x 75.5 mm x 33.5 mm |
| Sensing range max.: | 0 m ... 7 m 1) |
| Sensing range: | 0 m ... 5 m 2) |
| Housing desig (light emission): | Slim |
