TZ6102, LIMIT SWITCH ENCLOSED ΤΖ6102

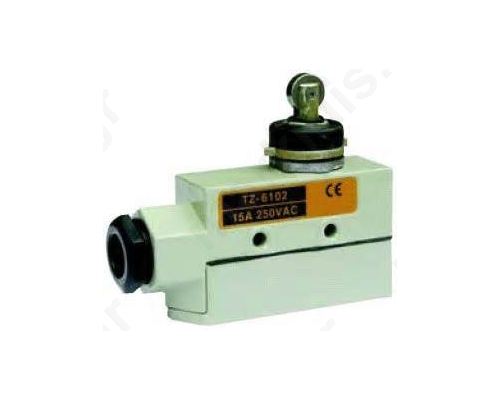

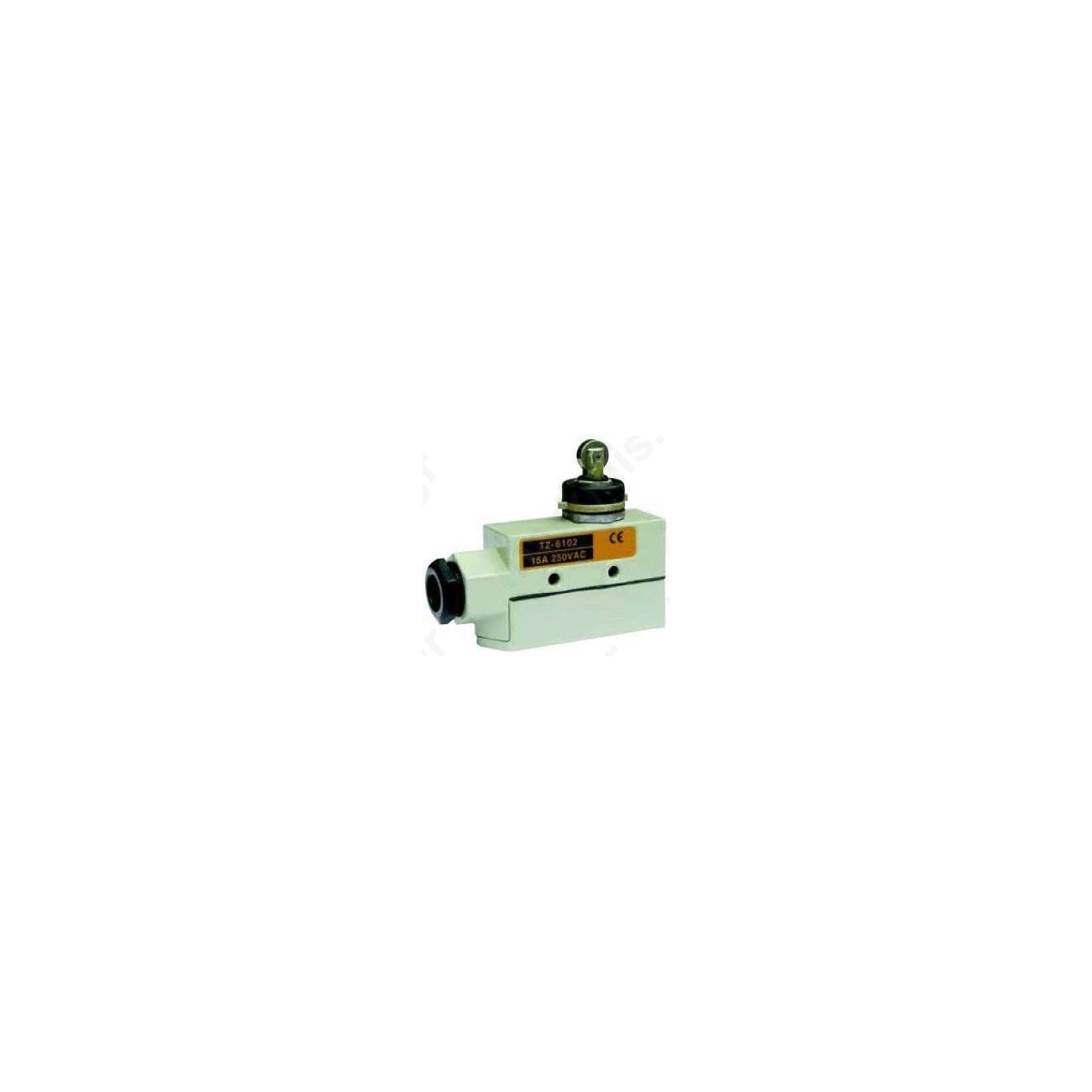

LIMIT SWITCH ENCLOSED TZ6102

• Manufacturer: TEND TECHNOLOGY CO.,LTD
• Item Code: I49RT-TZ6102
• Help Code: TZ6102
• Availability: In Stock
  Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.

Item Description

Long service life and large breaking capacity

·Features

.Models TZ-6 incorporate Model TM Micro switches with rugged diecast case.

.Available with various types of built- in switches(including split contact

type,maintained operation type,magnetic blowout type) and various actuators.

·Specifications

.Ratings

.Charateristics

.Charateristics the sam as micro switch see P A 1

.Contact configuration

.Operating characteristics

TYPE TZ-6001 TZ-6002 TZ-6003 TZ-6004 TZ-6043 OF　max. RF　min. PT　max. OT　min. MD　max. 250~350g 114g 0.4mm 5.5mm 0.05mm 250~350g 114g 0.5mm 3.6mm 0.05mm 570g 170g 4mm 6mm 0.4mm 570g 170g 4mm 6mm 0.4mm OP 38.2 ± 0.8mm 49.7 ± 1mm - - TYPE   TZ-6102 TZ-6103 TZ-6104 TZ-6143 OF　max. RF　min. PT　max. OT　min. MD　max. 800g 240g 2mm 5mm 0.1mm 500g 100g 1mm 3.5mm 0.12mm 640g 230g 5mm 6mm 0.4mm 640g 230g 5mm 6mm 0.4mm OP 45.8 ± 0.8mm 49.7 ± 0.8mm - -
