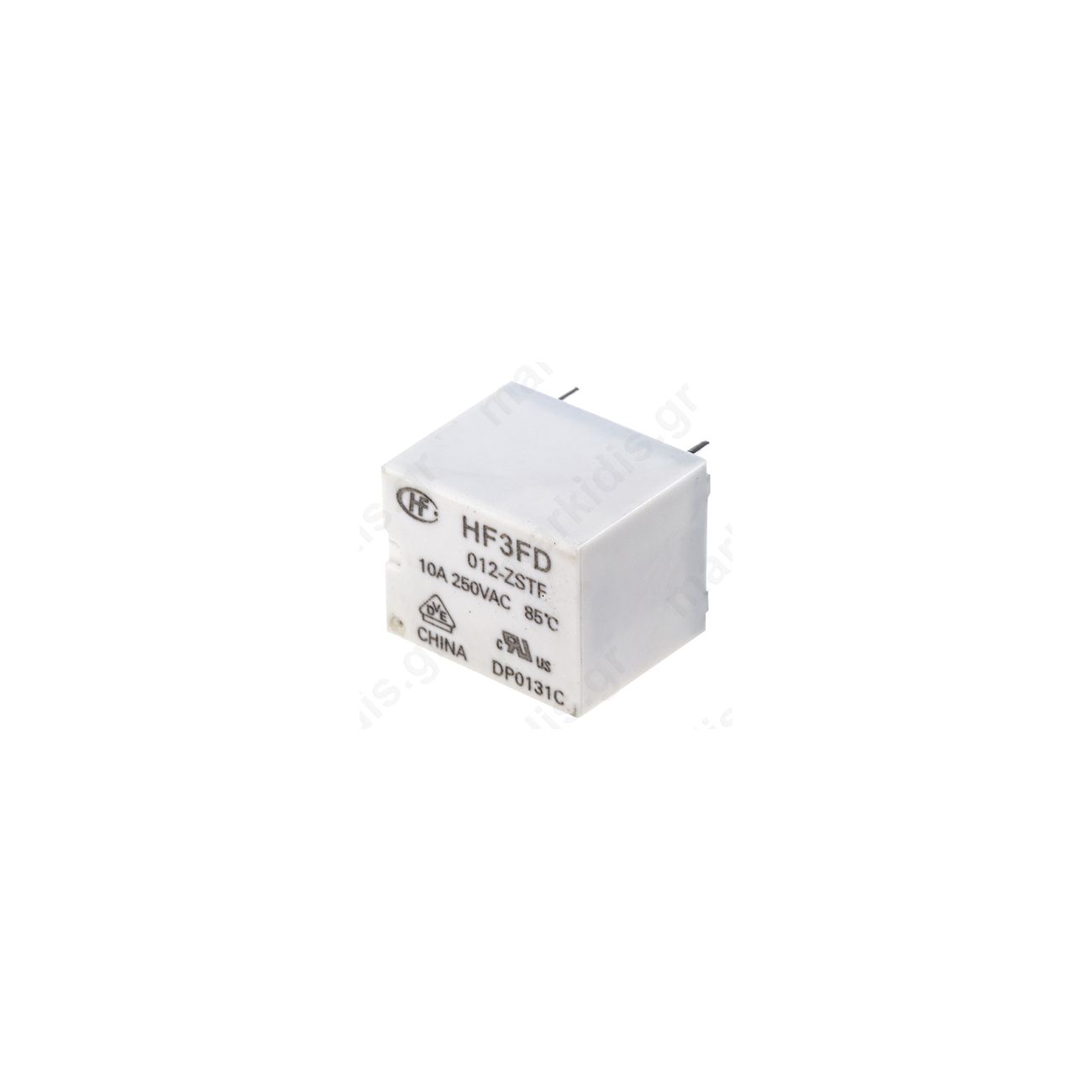

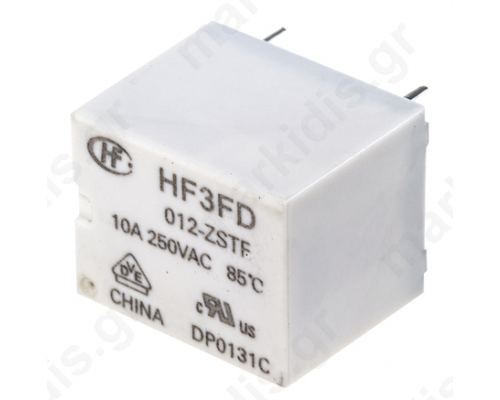

Relay Electromagnetic SPDT Ucoit 12VDC 10A/250VAC 10A/28VDC
- Manufacturer: RS
- Item Code: 530016810019
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Coil Voltage 12V dc
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Isolation Coil To Contact 2kV ac
Standards Met IEC 60335-1, RoHS Compliant, UL E134517, VDE 40014057 Length 19mm
Maximum Switching Power DC 300 W
Brand RS Pro
Operating Temperature Range -40 > +105°C
Mounting Type PCB Mount
Relay Switching Classification Subminiature High Power Relay
Special Features Plastic Sealed
Dimensions 19 x 15.2 x 15.5mm
Maximum Switching Current DC 10 A
Coil Power 360mW
Coil Resistance 400 Ω
Application Power
Terminal Type Through Hole
Contact Configuration SPDT
Height 15.5mm
Number of Poles 1
Contact Material Silver Alloy
Electrical Life 50000 Cycles
Maximum Switching Power AC 2.77 kVA
Maximum Switching Current AC 10 A
Depth 15.2mm
Life 10000000 (Mechanical) cycles, 50000 (Electrical) cycles
Maximum Switching Voltage AC 277V ac
Maximum Switching Voltage DC 30V dc
