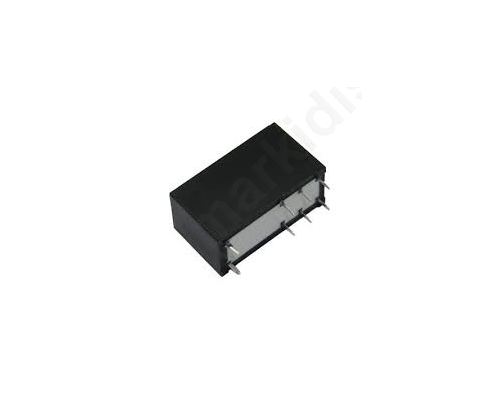

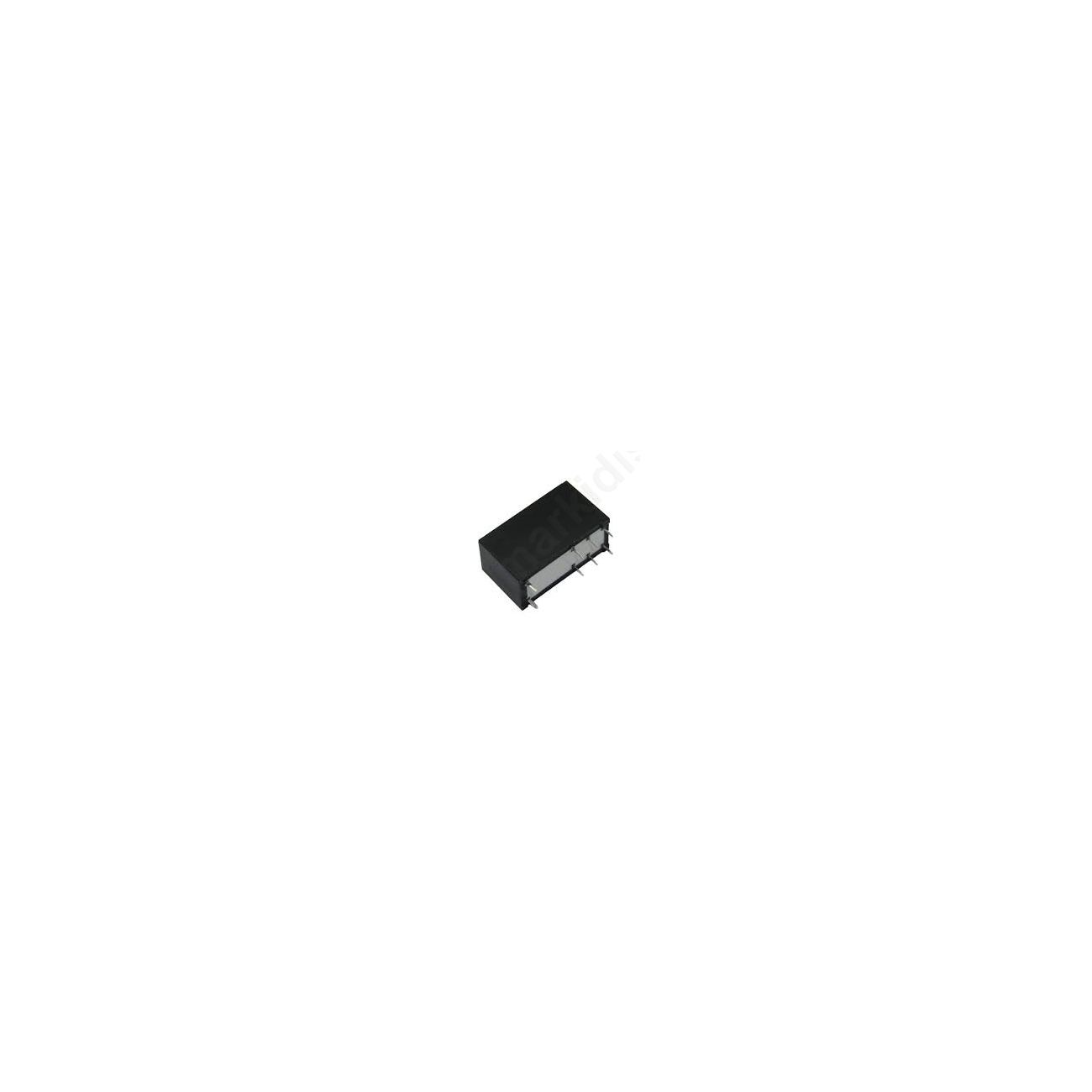

Relay electromagnetic DPDT Ucoil 24VDC 5A/250VAC 5A/30VDC
Click to enlarge
Share:
- Item Code: 800016811091
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Manufacturer SHORI ELECTRIC
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V DC
AC contacts rating @R
(at resistive load) 5A / 250V AC
DC contacts rating @R
(at resistive load) 5A / 30V DC
Contact current max. 5A
Switched voltage max. 30V DC, max. 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 800O
Body dimensions 29x12.5x21.3mm
Coil power consumption 720mW
Mechanical durability 10000000 cycles
Operating temperature -40...70°C
Weight 13g
Relay series S4M
Contact resistance 100mO
Electrical life 100000 cycles
Terminal pitch 5mm
Coil current 30mA
