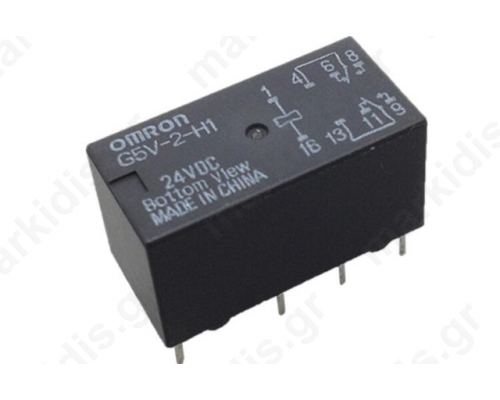

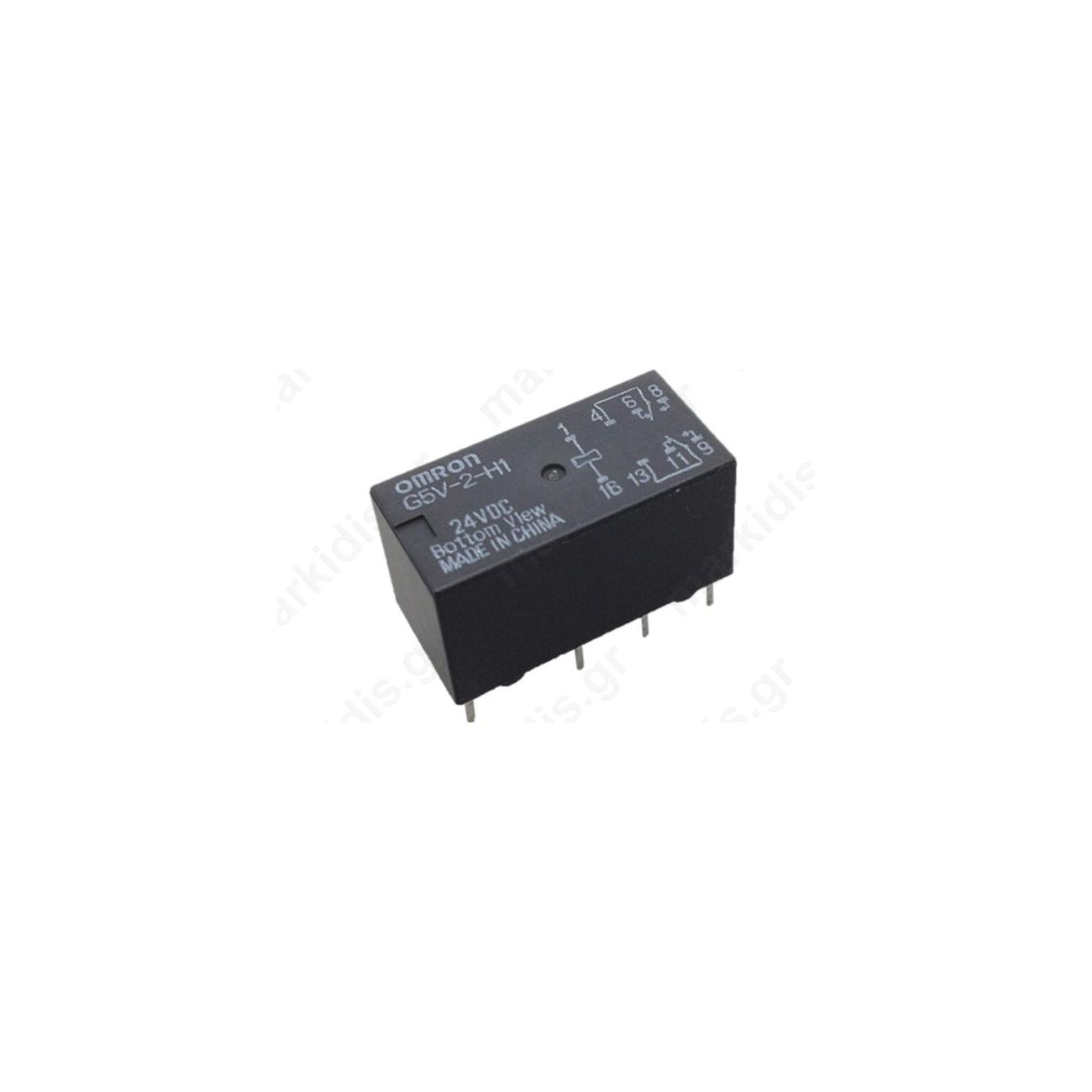

Relay: electromagnetic DPDT Ucoil:24VDC 0.5A/125VAC; 2A/30VDC
Click to enlarge
Share:
- Item Code: 800016811020
- Help Code: G5V-2 24DC
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Manufacturer OMRON
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V DC
AC contacts rating @R
(at resistance load) 0.5A / 125VAC
DC contacts rating @R
(at resistance load) 2A / 30VDC
Contact current max. 2A
Switched voltage max 125V AC, max 125V DC
Relay variant miniature
Mounting PCB
Coil resistance 1.6kO
Operate time 7ms
Body dimensions 20.5 x 10.1 x 11.5mm
Release time 3ms
Coil power consumption 360mW
Operating temperature -25...70°C
Relay series G5V-2
Contact resistance 50mO
Terminal pitch 5mm
Coil current 15mA
Contact plating gold-plated
