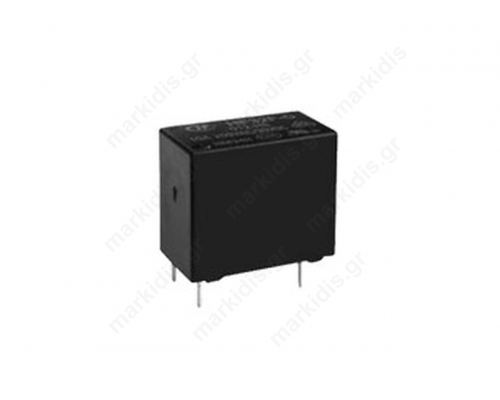

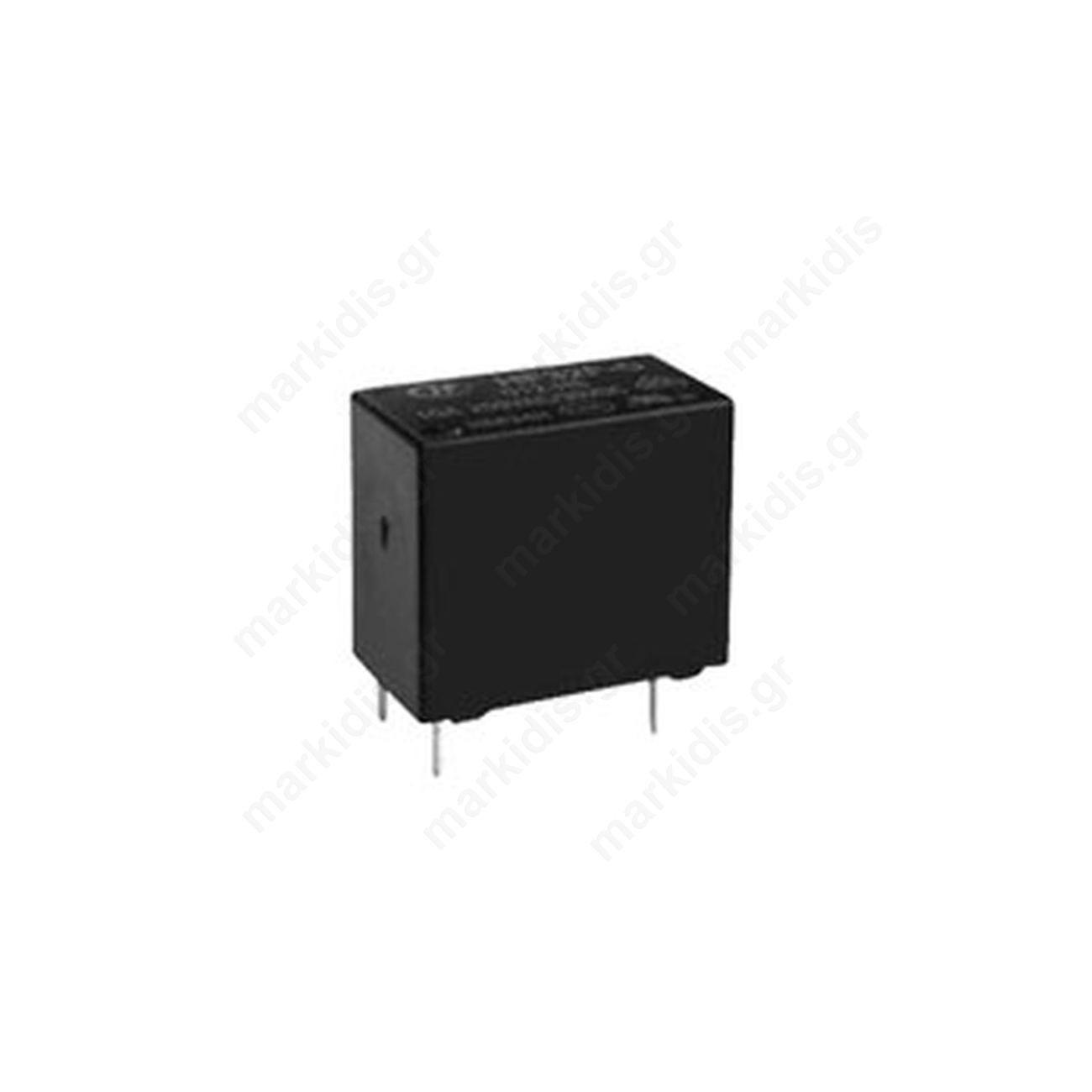

Relay electromagnetic SPST-NO Ucoil 12VDC 7A/250VAC
Click to enlarge
Share:
- Item Code: 800016811078
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R
(at resistive load) 7A / 250V AC
DC contacts rating @R
(at resistive load) 7A / 30V DC
Contact current max. 10A
Switched voltage max. 30V DC, max. 277V AC
Relay variant subminiature
Mounting PCB
Coil resistance 720O
Coil voltage min. 9V DC
Coil voltage max. 15.6V DC
Operate time 10ms
Body dimensions 20.5x7.2x15.3mm
Release time 10ms
Coil power consumption 200mW
Operating temperature -40...85°C
Contact resistance 100mO
Contact material AgSnO2
