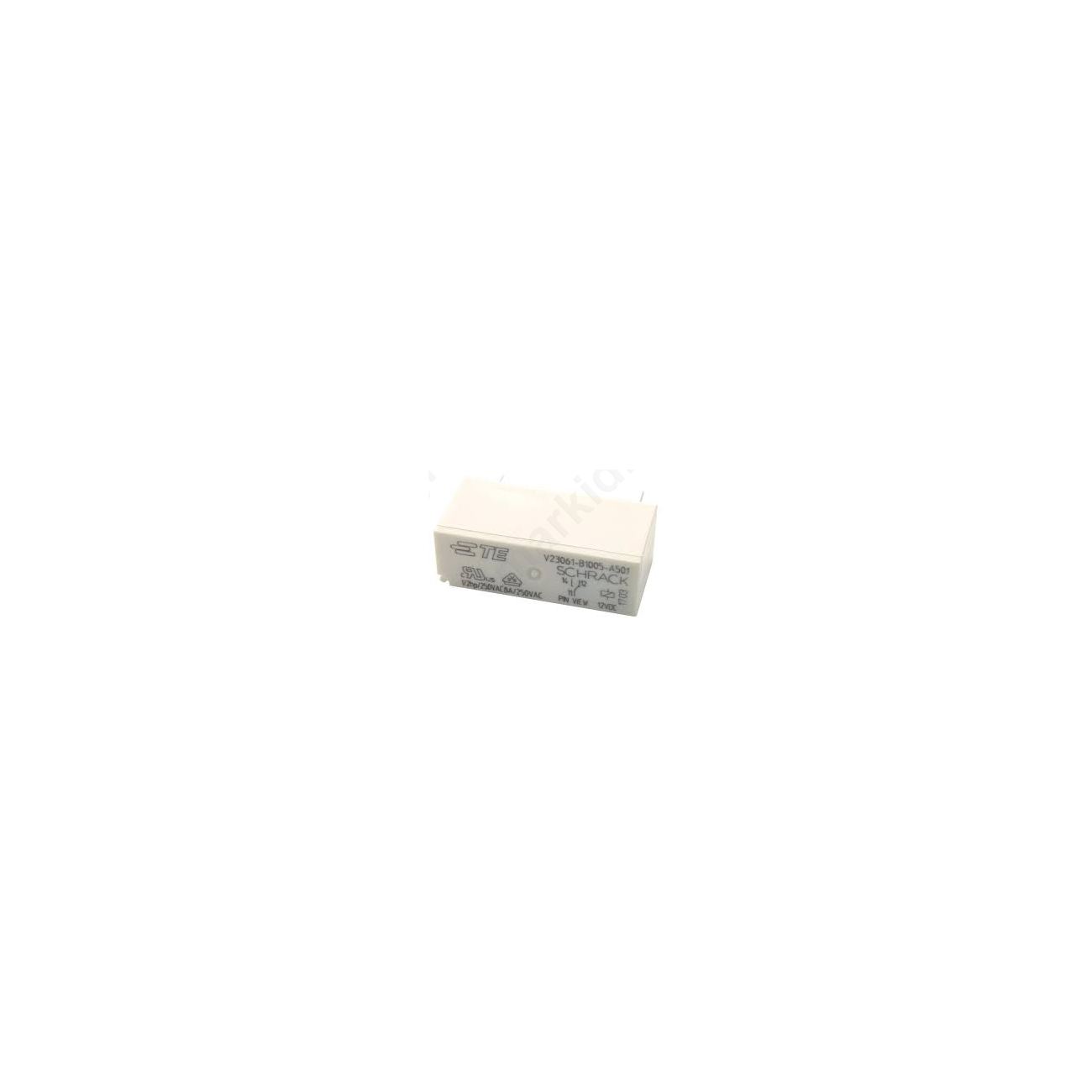

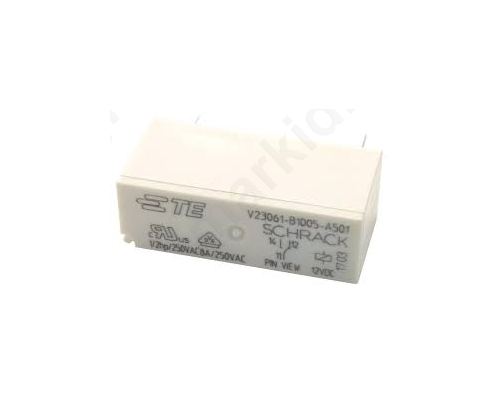

Relay electromagnetic SPST-NO Ucoil 12VDC 8A/240VAC 8A/30VDC
Click to enlarge
Share:
- Item Code: 800016811088
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R
(at resistive load) 8A / 240V AC
DC contacts rating @R
(at resistive load) 8A / 30V DC
Contact current max. 8A
Switched voltage max. 300V DC, max. 400V AC
Relay variant miniature
Mounting THT
Coil resistance 652O
Operate time 10ms
Body dimensions 28.6x10x15mm
Release time 5ms
Coil power consumption 221mW
Operating temperature -40...85°C
Relay series V23061
Contact material AgSnO2
Terminal pitch 2.54mm
