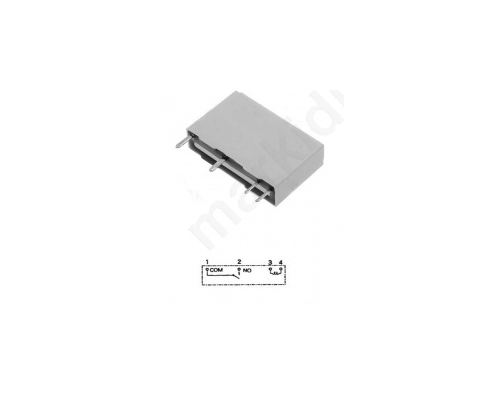

Relay electromagnetic SPST-NO Ucoil: 5VDC 5A/250VAC 5A/30VDC
Click to enlarge
Share:
- Item Code: 800016811082
-
Availability:
Call us
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Manufacturer FORWARD INDUSTRIAL CO.
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 5V DC
AC contacts rating @R
(at resistive load) 5A / 250V AC
DC contacts rating @R
(at resistive load) 5A / 30V DC
Contact current max. 5A
Switched voltage max. 110V DC, max. 250V AC
Relay variant interface
Mounting PCB
Coil resistance 208O
Body dimensions 20x12.5x5mm
Coil power consumption 120mW
Mechanical durability 20000000 cycles
Operating temperature -40...70°C
Weight 3g
Relay series FRM18
Contact resistance 50mO
Contact material silver alloy
Terminal pitch 7.62mm
Coil current 24mA
