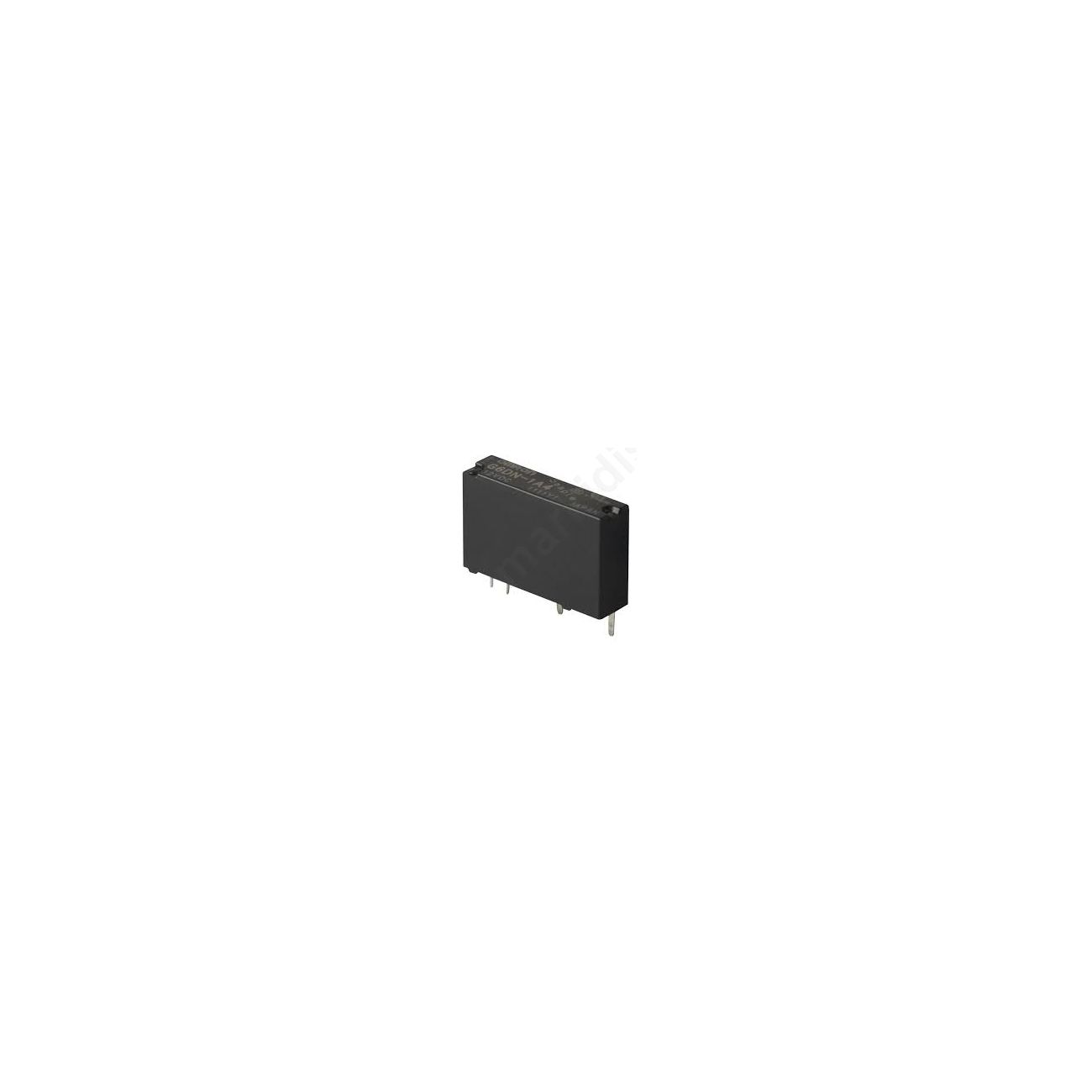

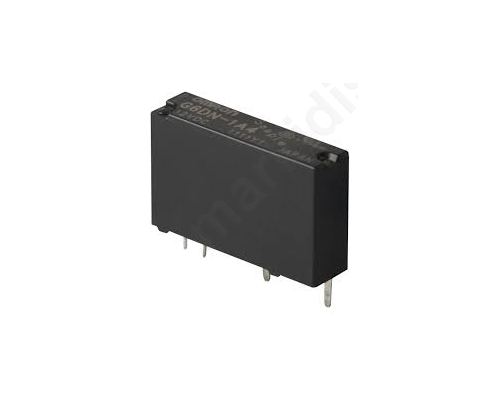

Relay electromagnetic SPST-NO 24VDC 5A/250VAC 5A/30VDC
- Manufacturer: OMRON
- Item Code: 800016811081
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Manufacturer OMRON
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating @R
(at resistive load) 5A / 250V AC
DC contacts rating @R
(at resistive load) 5A / 30V DC
Contact current max. 5A
Switched voltage max. 125V DC, max. 277V AC
Relay variant miniature
Mounting PCB
Coil resistance 3.2kO
Operate time 10ms
Body dimensions 5.05x12.45x19.97mm
Release time 5ms
Coil power consumption 180mW
Operating temperature -40...90°C
Relay series G6DN
Contact resistance 100mO
Terminal pitch 7.62mm
Coil current 7.5mA
