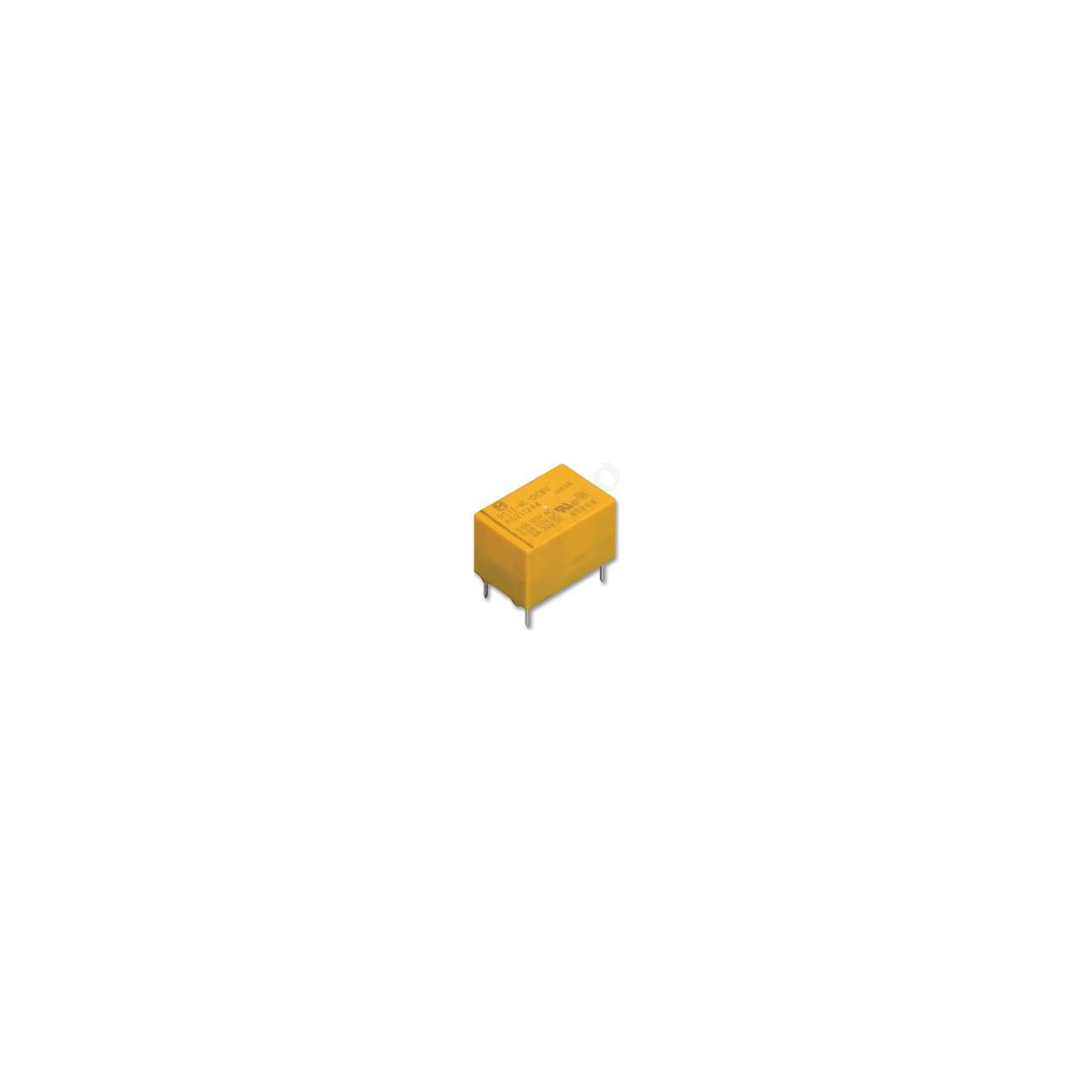

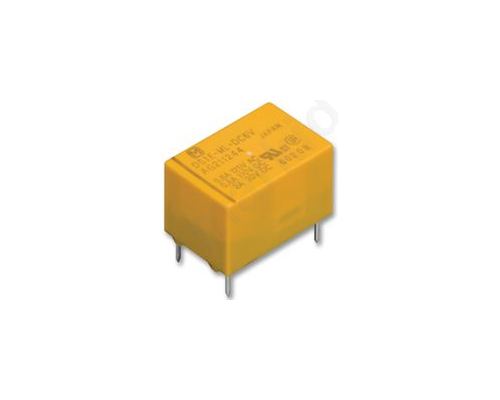

DS1E-M-DC24V MINIATURE RELAY, SPDT, 24VDC, 2A, THD
Click to enlarge
Share:
- Manufacturer: Panasonic
- Item Code: 505016810002
- Help Code: DS1E-M-DC24V
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Product Information
- RELAY, PCB, SPDT, 24VDC
- Coil Type: DC Monostable
- Contact Configuration: SPDT
- Contact Current Max: 3A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Coil Voltage VDC Nom: 24V
- Coil Current: 16.7mA
- Coil Resistance: 1.44kohm
- Coil Power Continuous: 400mW
- Relay Mounting: Through Hole
- External Height: 9.8mm
- External Width: 15mm
- External Depth: 9.9mm
- SVHC: No SVHC (16-Jun-2014)
- Contact Current AC Max: 2A
- Contact Current DC Max: 2A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 220V
- External Length / Height: 9.8mm
- Mounting Type: PCB
- No. of Poles: 1
- Nom Operating Power: 400mW
- Relay Type: Miniature
- Series: DS
