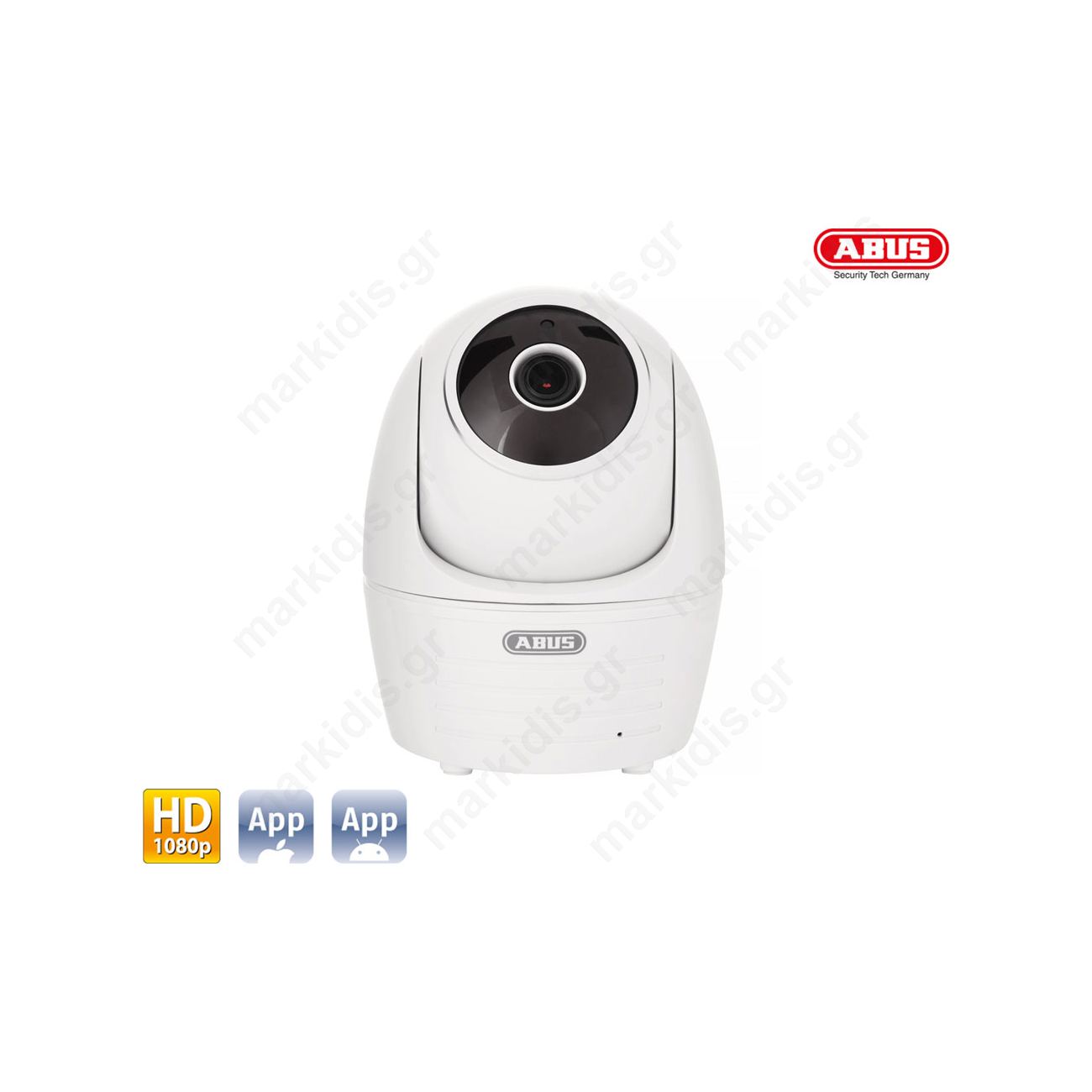

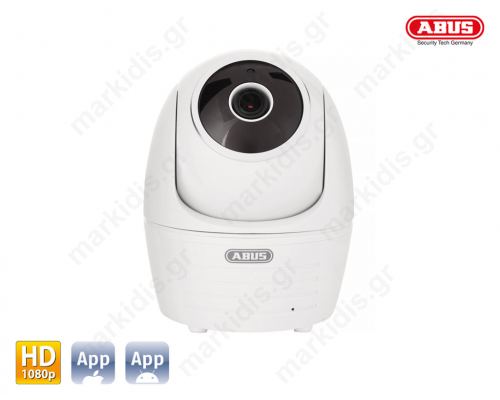

PPIC32020 Smart Security World Wi-Fi Pan/Tilt Indoor Camera

The ABUS WiFI Pan/Tilt indoor camera PPIC32020 is designed for effective all-round monitoring of interior spaces. The camera provides up to Full HD 1080p resolution image and can monitor 270° in the panning range and 90° in the tilting range. It can be controlled and monitored via app (iOS, Android)s. Movement within the field of vision of the camera triggers recording on the micro-SD card (accessory, max. 128 GB). It also provides image at night, at 0 lux, due to the infrared night vision function. Features include taking a snapshot image, E-mail and push notification alarming via app, and recording manually or when motion is detected. Provides all-around visibility (270° panning and 90° tilting range) and recording to SD card (optional extra accessory, max. 168 GB). The network load remains low and increases storage space, thanks to compressed data transfer (H.264 compression). Τhe camera is suitable as a baby monitor also.

Technical features:

- ABUS IP P/T indoor camera, for standalone use or compatible with ABUS Smartvest alarm system for alarm verification
- Software App: ABUS App2Cam Plus (Android/iOS), with intuitive step-by-step installation instructions
- Focal length: 4 mm
- Audio IN-OUT: Yes
- Pan/tilt area 270° Horizontal / 90° Vertical
- IR LEDs: Yes, IR cut filter: Yes, Day/night switching: Auto
- Range of night vision function: Up to 12 m (Depending on installation location site conditions)
- White balance: AWB
- Minimum illumination (color) 1 lx, (B/W) 0 lx. Day/night switching: Auto
- Resolution: Full HD (1080p) / HD (720p) / VGA (480p), incl. bidirectional audio
- Recording to micro-SD card (accessory, max. 128 GB)
- Pre-alarm/post-alarm memory 2 Sec
- Recording modes Manual / motion detection
- Image sensor: 1/2,7" CMOS
- Frame rate: Full HD (1080p) @ 20fps
- Horizontal angle: 90°, Vertical angle of view 45 °
- Frequency: 2400–2485 GHz
- Network access: RJ-45 socket (10/100 Mbps) TCP/IP, UDP, SMTP, NTP, DHCP, ARP
- Encryption: AES 128bit, WPA/WPA2-PSK
- Video compression: H.264
- Number of users: 3 simultaneous access sessions
- Alarming: Push notification / E-Mail
- Wireless range (Depending on installation location site conditions) 20 to 50 m
- Power consumption: 4,5 W
- Max. operating temperature: 50 C
- Min. operating temperature: -10 C
- DC voltage supply: 5 V
- Dimensions: 115 x 92 x 118 mm (B x L x H)
- 2-year warranty

Scope of delivery:

- 1x Wi-Fi pan/tilt camera PPIC32020
- 1x Power supply unit 5 V DC/1.5 A
- 1x LAN cable 1m
- 1x Ceiling mount
- 1x Mounting material
