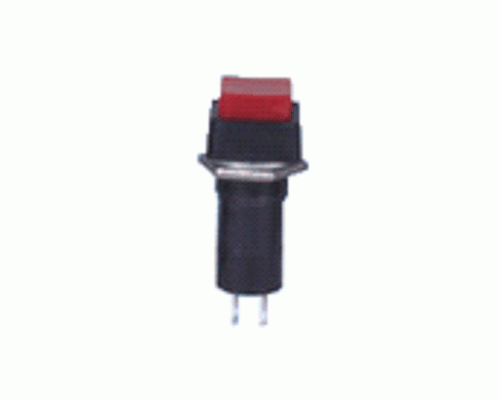

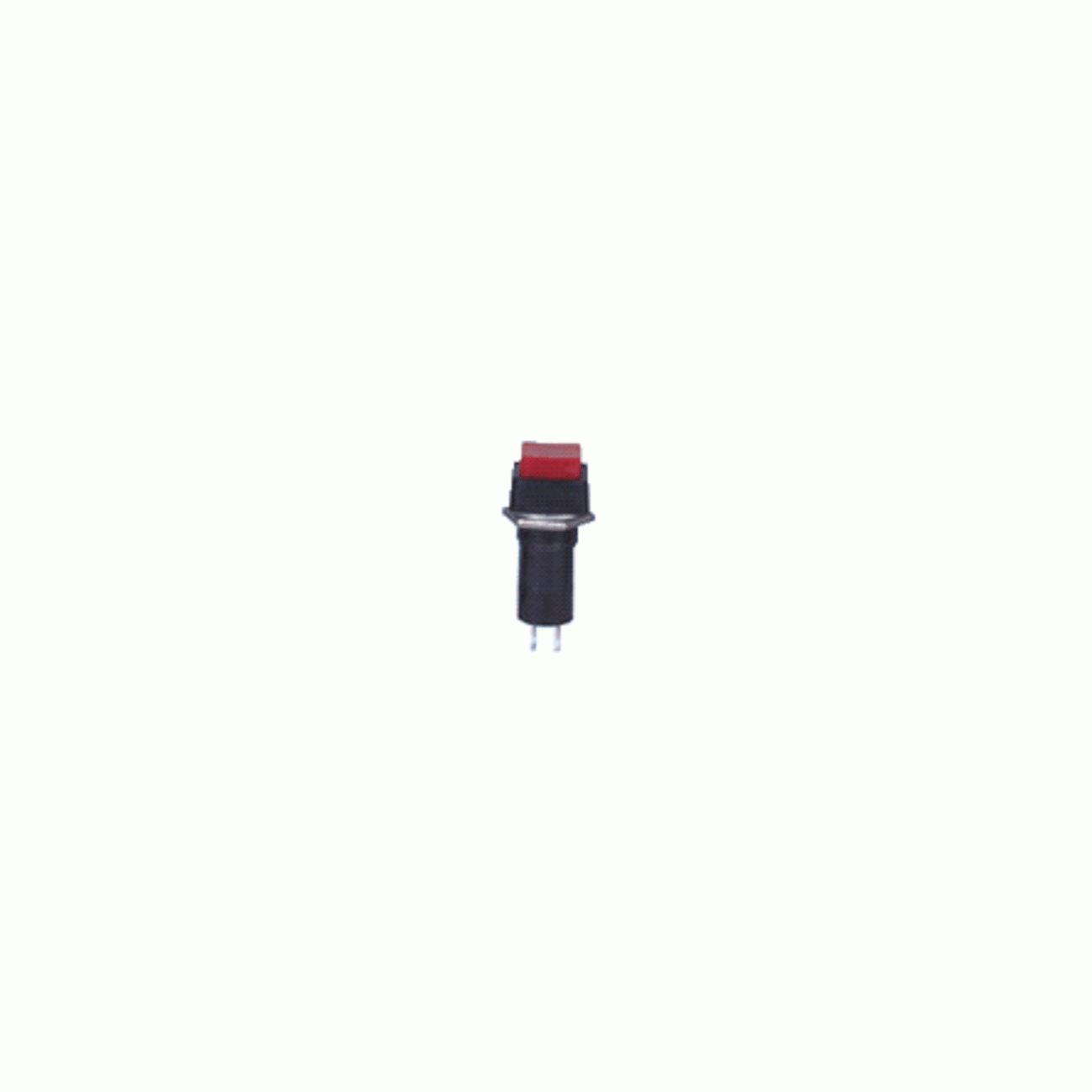

PUSH BUTTON SWITCH SQUARE OFF-ON
PUSH BUTTON SWITCH SQUARE OFF-ON
- Item Code: I080JR5401A
- Help Code: PBS-12AR
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Specification
Switch type push-button
Stable positions number 2-position
Contacts configuration SPST-NO
AC contacts rating
(at resistance load) 1 A / 250 VAC
Actuator colour black
Leads for soldering
Switching method OFF-ON
Operating temperature -25...70°C
Mounting panel mounting
Mounting hole diameter ?12mm
Max. contact resistance: 20mΩ
Electrical life 50000cycles
