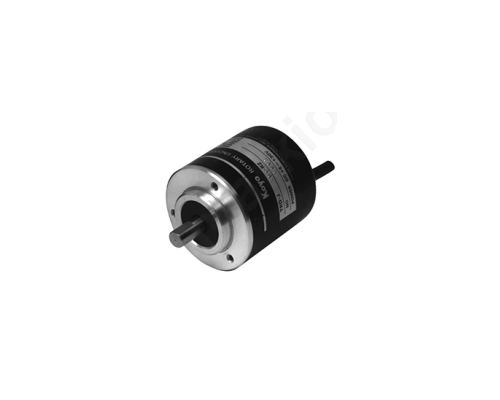

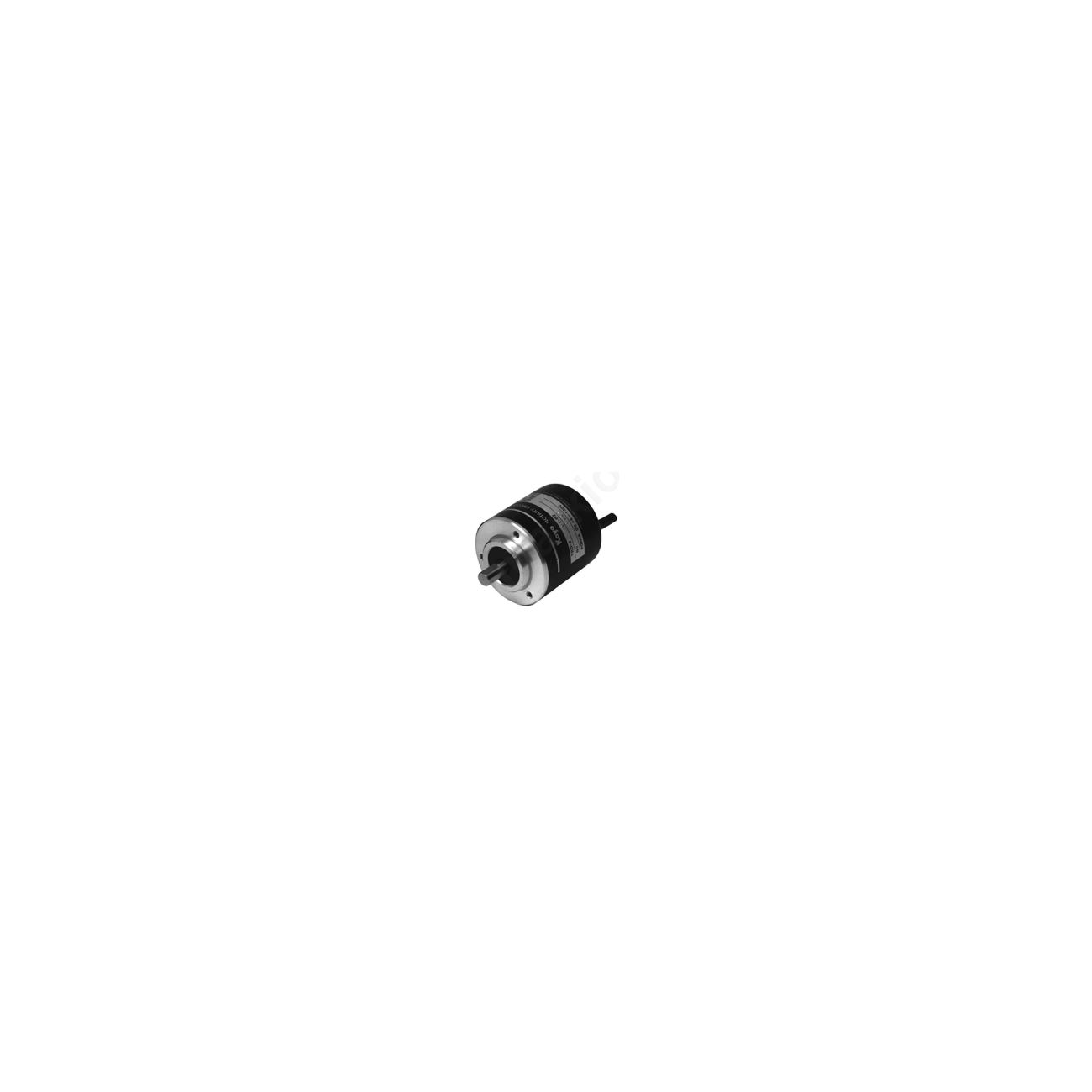

ROTARY ENCODER TRD-J1000RZ
Click to enlarge
Share:
- Item Code: I83301171100
- Help Code: TRD-J1000RZ
-
Availability:
Call us
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Encoder Type: Incremental
Duty Type: Medium
Pulse Per Revolution: 1000
Input Voltage (VDC) : 5-30
Output Form: Push - Pull (Totem Pole)
Signal Format: Quadrature (2-Phase Output) + Home Position
Output From: Back
Shaft: Solid
Shaft Diameter (mm): 8
Diameter (mm): 50
Depth (mm): 50
Cable Length (meter): 0.50
Connector Type: Tinned Ends
Protection Level: IP50 (Dust Proof)
Short Circuit Protection: No
Reverse Origin Action: Positive Logic (Active High)
