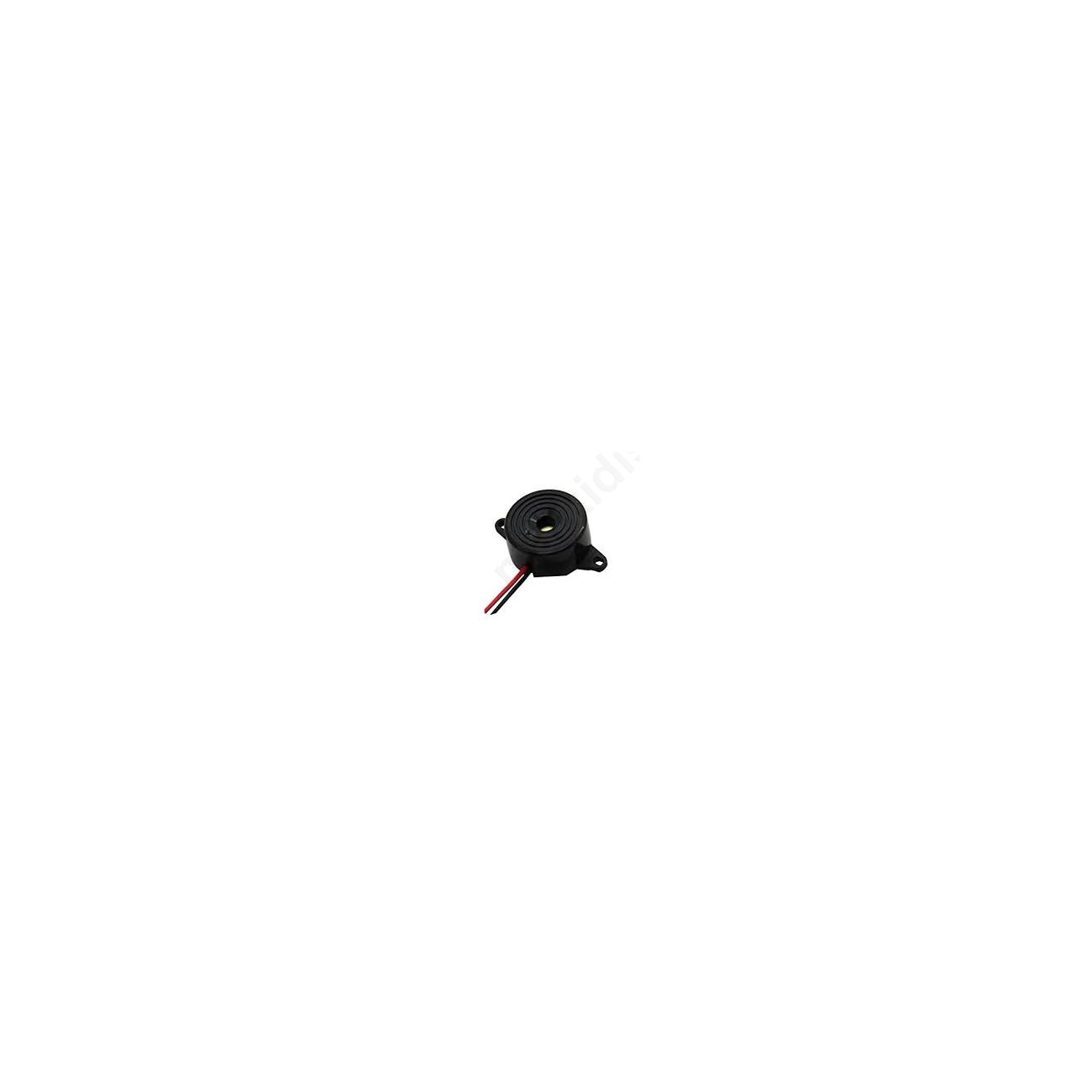

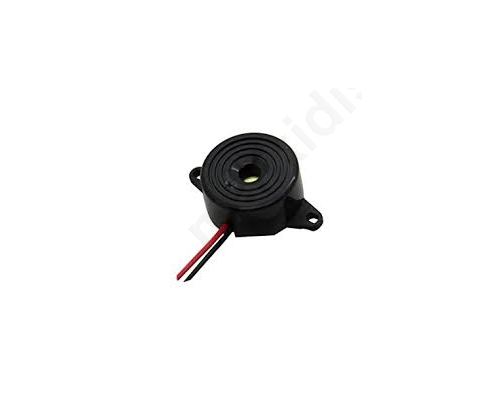

Sound transducer: piezo alarm; with built-in generato
Click to enlarge
Share:
- Item Code: 800019910007
- Help Code: LD-BZPG-2312
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Manufacturer LOUDITY
Type of sound transducer piezo alarm
Sound transducer features with built-in generator
Resonant frequency 3.3kHz
Operating current 12mA
Operating temperature -20...60°C
Diameter 22.5mm
Height 12mm
Operating voltage 1.5...24V DC
Mounting holes pitch 30mm
Sound level 85dB (d=0.3 m)
Leads cables
Capacitance measurement frequency 500Hz
