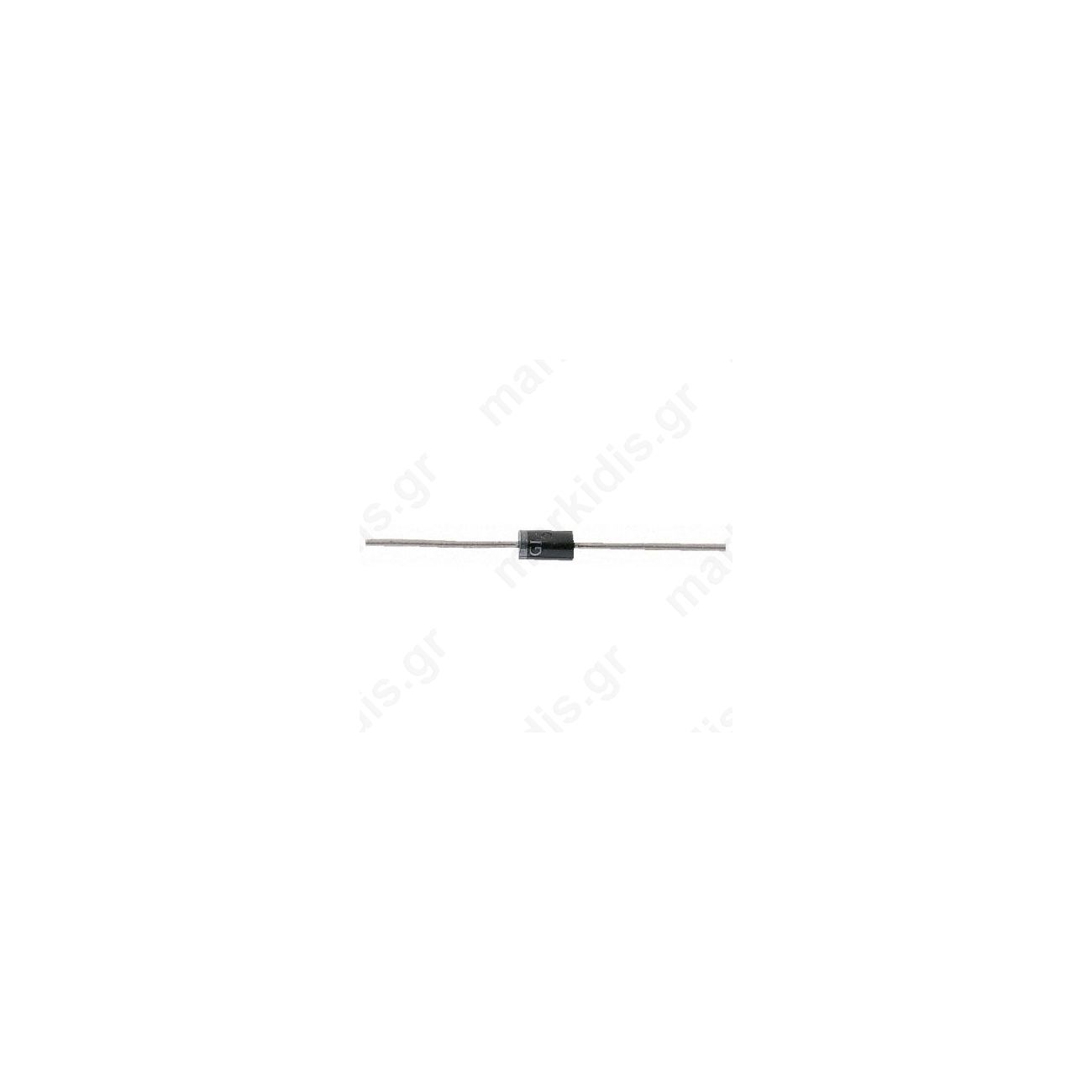

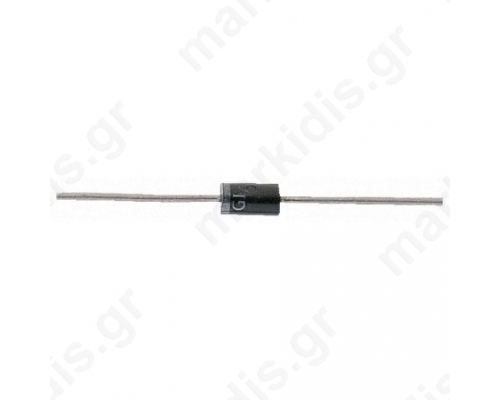

P6KE250CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-15

 Click to enlarge



      Share:
  • Manufacturer: ST MICROELECTRONICS
  • Item Code: 530039910001
  • Help Code: P6KE250CA
  • Availability: In Stock
    Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
0.40€ 0.4
VAT included
Buy now WishList Compare
Product was successfully added to cart
Item Description


Diode Configuration Single
Maximum Operating Temperature 175 °C
Number of Elements per Chip 1
Length 6.75mm
Maximum Clamping Voltage 442V
Minimum Breakdown Voltage 237V
Brand STMicroelectronics
Maximum Peak Pulse Current 9A
Package Type DO-15
Mounting Type Through Hole
Minimum Operating Temperature -65 °C
Width 3.53mm
Test Current 1mA
Maximum Reverse Stand-off Voltage 213V
Maximum Reverse Leakage Current 1΅A
Height 3.53mm
Pin Count 2
Dimensions 6.75 x 3.53 x 3.53mm
Direction Type Bi-Directional
Peak Pulse Power Dissipation 600W
