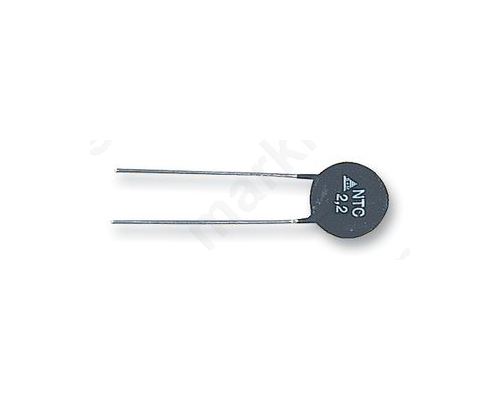

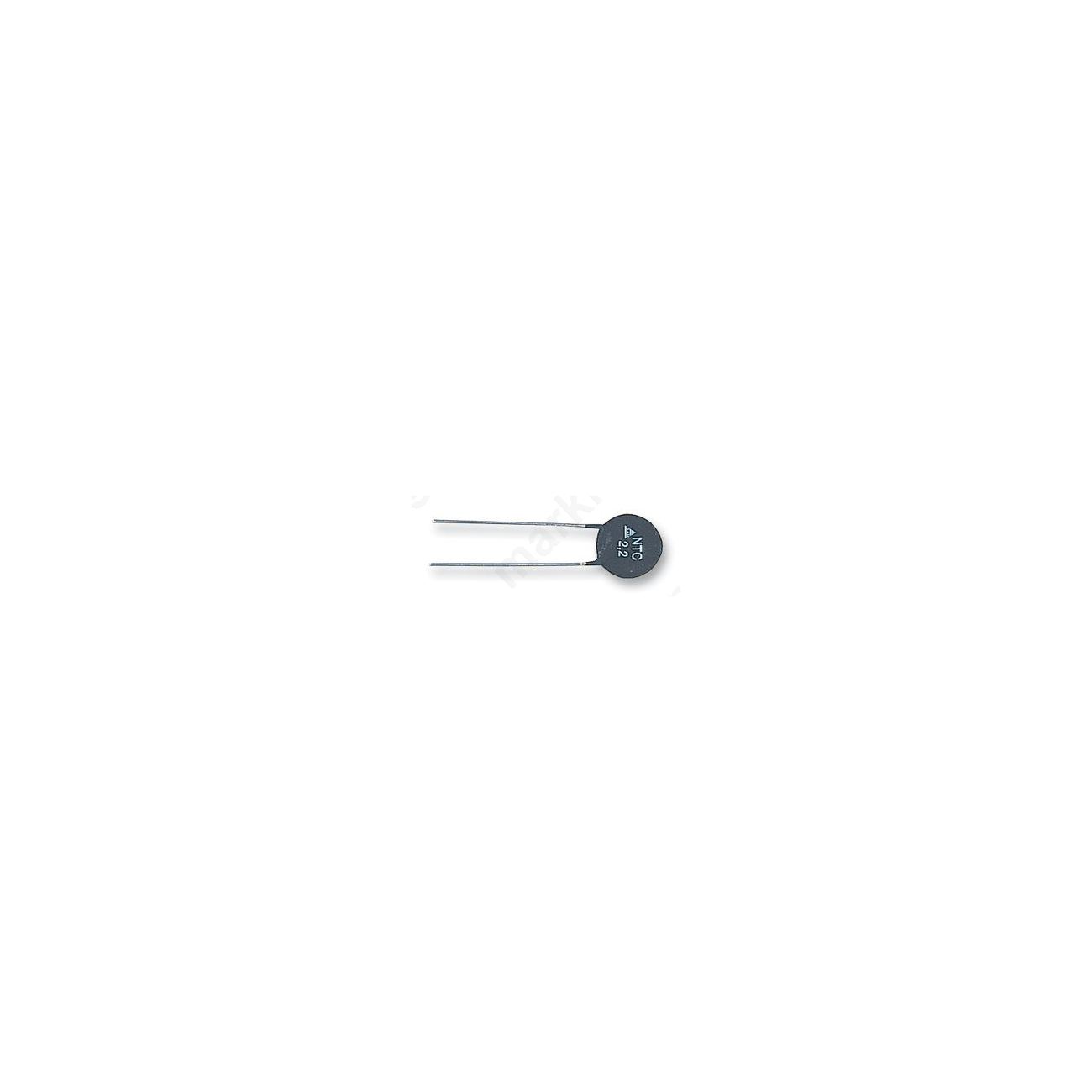

EPCOS - B57364S109M - THERMISTOR, NTC

 Click to enlarge



      Share:
  • Item Code: 505031100033
  • Help Code: B57364S109M
  • Availability: In Stock
    Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
7.30€ 7.3
VAT included
Buy now WishList Compare
Product was successfully added to cart
Item Description
  • THERMISTOR, NTC
  • Thermistor Type: NTC
  • Resistance: 1ohm
  • Thermistor Tolerance: ± 20%
  • Beta Value (K): 2800K
  • Thermistor Case Style: Radial Leaded
  • No. of Pins: 2
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 170°C
  • SVHC: No SVHC (19-Dec-2012)
  • Beta Value Lower Limit Temperature: 25°C
  • Body Diameter: 21mm
  • Current Max: 16A
  • External Depth: 7mm
  • External Length / Height: 28mm
  • External Width: 21mm
  • Full Power Rating Temperature: 25°C
  • Lead Diameter: 1.0mm
  • Lead Length: 25mm
  • Lead Spacing: 7.5mm
  • Operating Temperature Range: -55°C to +170°C
  • Operating Voltage Range: 265Vrms
  • Package / Case: Radial
  • Power Dissipation Ptot Max: 5.1W
  • Resistance Temperature: 25°C
  • Resistance Tolerance: ± 20%
  • Resistance Tolerance +: 20%
  • Resistance Tolerance -: 20%
  • Series: B573
  • Temperature Upper Limit Beta Value: 100°C
