DOORBELL PUSH BUTTON SPST 1NO 1NC

 Click to enlarge


      Share:

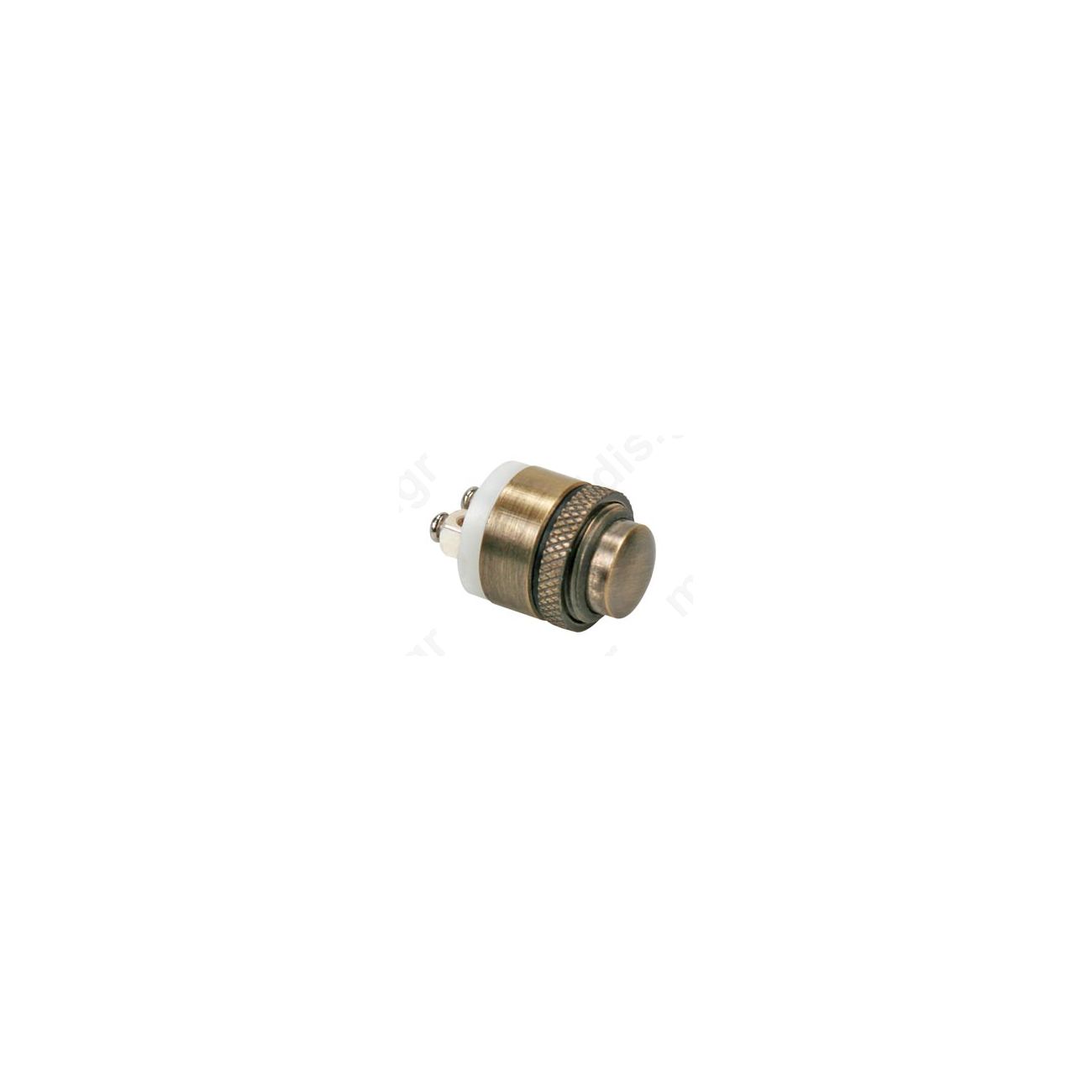

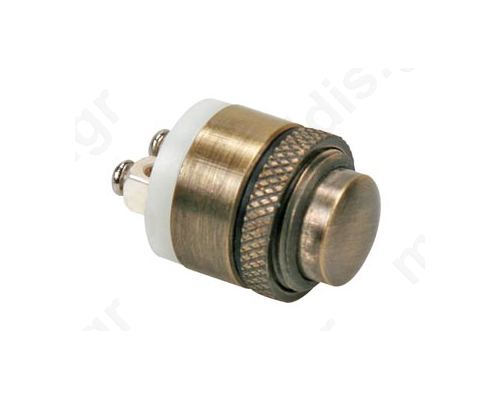

DOORBELL PUSH BUTTON SPST 1NO 1NC

  • Manufacturer: VELLEMAN
  • Item Code: 548057610002
  • Help Code: R1800DB
  • Availability: In Stock
    Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
14.60€ 14.6
VAT included
Buy now WishList Compare
Product was successfully added to cart
Item Description

Specifications

  • type: OFF - (ON) - SPST
  • 48VDC / 2A
  • mounting hole: Ø16mm
  • operating temperature: -25°C ~ +55°C
  • operating humidity: 45 ~ 85% RH
  • insulation resistance: > 100M ohms
  • contact resistance: < 50M ohms
  • contact material: silver alloy
  • mechanical life: 1 000 000 cycles
  • electrical life: 50 000 cycles
  • dielectric strength:
    • between terminals of the same pole: 1000VAC
    • between terminals of different poles: 2000VAC
  • body material: nickel-plated brass
  • pressure: 5.5N
  • IP rating: IP40/IP65
  • max. voltage:
    • 24VDC / 1A
    • 230VAC / 0.5A
